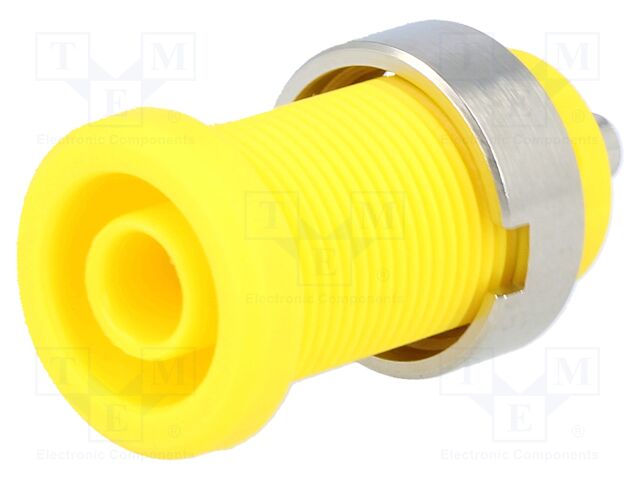

3270-I-GE ELECTRO-PJP
Hersteller: ELECTRO-PJP
Category: 4mm Banana Sockets
Description: Laboratory connector: 4mm banana; socket; 25A; Cutout: Ø12mm; 5mΩ
Type of lab connector: 4mm banana
Connector: socket
Current rating: 25A
Mounting hole dimensions: Ø12mm
Colour: yellow
Contact plating: nickel plated
Mounting: on panel; screw
Connector variant: insulated
Conform to the norm: CAT II 1000V; CAT III 1000V; EN 61010
Insulator material: polyvinyl acetate
Contact material: brass
Max. contact resistance:: 5mΩ
Leads: for soldering
Produktrezensionen
Produktbewertung abgeben
Technische Details 3270-I-GE ELECTRO-PJP
Category: 4mm Banana Sockets, Description: Laboratory connector: 4mm banana; socket; 25A; Cutout: Ø12mm; 5mΩ, Type of lab connector: 4mm banana, Connector: socket, Current rating: 25A, Mounting hole dimensions: Ø12mm, Colour: yellow, Contact plating: nickel plated, Mounting: on panel; screw, Connector variant: insulated, Conform to the norm: CAT II 1000V; CAT III 1000V; EN 61010, Insulator material: polyvinyl acetate, Contact material: brass, Max. contact resistance:: 5mΩ, Leads: for soldering.
