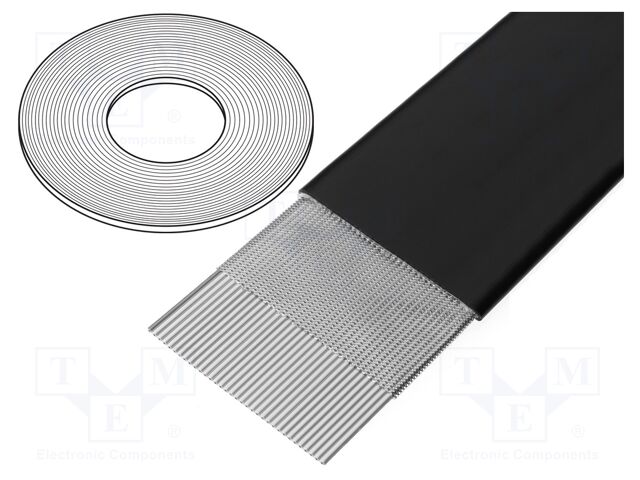

3517/10SF (100FT) 3M
Hersteller: 3MCategory: Ribbon Cables - Single Color
Description: Wire: ribbon; 1.27mm; stranded; Cu; braid made of copper wires
Type of wire: ribbon
Cable structure: 10x28AWG
Core structure: stranded
Kind of core: Cu; tinned
Number of cores: 10
Shield structure: braid made of copper wires
Wire insulation material: PVC
Insulation colour: black
Rated voltage: 50V
Operating temperature: -20...80°C
Package contents: 30.5m
Tape pitch: 1.27mm
Conform to the norm: CSA AWM I A/B FT1; UL 20879; UL CL2
Cable features: work in continuous operation up to 100 million cycles
A dimension: 16mm
B dimension: 11.43mm
Version: Splice Free
Core diameter: 28AWG
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 394.99 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3517/10SF (100FT) 3M
Category: Ribbon Cables - Single Color, Description: Wire: ribbon; 1.27mm; stranded; Cu; braid made of copper wires, Type of wire: ribbon, Cable structure: 10x28AWG, Core structure: stranded, Kind of core: Cu; tinned, Number of cores: 10, Shield structure: braid made of copper wires, Wire insulation material: PVC, Insulation colour: black, Rated voltage: 50V, Operating temperature: -20...80°C, Package contents: 30.5m, Tape pitch: 1.27mm, Conform to the norm: CSA AWM I A/B FT1; UL 20879; UL CL2, Cable features: work in continuous operation up to 100 million cycles, A dimension: 16mm, B dimension: 11.43mm, Version: Splice Free, Core diameter: 28AWG, Anzahl je Verpackung: 1 Stücke.
