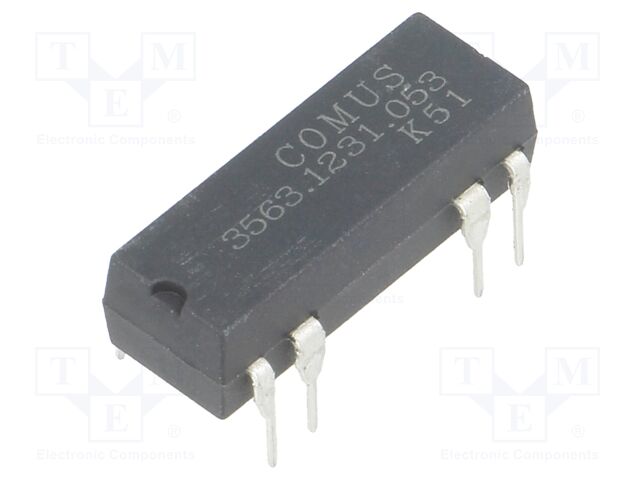

3563.1231.053 COMUS
Hersteller: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPDT; Ucoil: 5VDC; 400mA; max.100VDC; 5W; THT
Body dimensions: 19.5x6.9x6.9mm
Coil resistance: 200Ω
Contacts configuration: SPDT
Type of relay: reed switch
Relay series: 3563
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
Coil voltage max.: 7V DC
Switched voltage: max. 100V DC
Contact current max.: 400mA
Switching capacity: 5W
Contact resistance: 0.2Ω
Optional equipment: diode
Mounting: THT
Terminal pitch: 2.54mm
Operating temperature: -20...85°C
Case: DIP14
Anzahl je Verpackung: 1 Stücke
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPDT; Ucoil: 5VDC; 400mA; max.100VDC; 5W; THT
Body dimensions: 19.5x6.9x6.9mm
Coil resistance: 200Ω
Contacts configuration: SPDT
Type of relay: reed switch
Relay series: 3563
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
Coil voltage max.: 7V DC
Switched voltage: max. 100V DC
Contact current max.: 400mA
Switching capacity: 5W
Contact resistance: 0.2Ω
Optional equipment: diode
Mounting: THT
Terminal pitch: 2.54mm
Operating temperature: -20...85°C
Case: DIP14
Anzahl je Verpackung: 1 Stücke
auf Bestellung 59 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
12+ | 6.26 EUR |
13+ | 5.66 EUR |
14+ | 5.35 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3563.1231.053 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPDT; Ucoil: 5VDC; 400mA; max.100VDC; 5W; THT, Body dimensions: 19.5x6.9x6.9mm, Coil resistance: 200Ω, Contacts configuration: SPDT, Type of relay: reed switch, Relay series: 3563, Rated coil voltage: 5V DC, Coil voltage min.: 3.75V DC, Coil voltage max.: 7V DC, Switched voltage: max. 100V DC, Contact current max.: 400mA, Switching capacity: 5W, Contact resistance: 0.2Ω, Optional equipment: diode, Mounting: THT, Terminal pitch: 2.54mm, Operating temperature: -20...85°C, Case: DIP14, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 3563.1231.053 nach Preis ab 5.35 EUR bis 6.26 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3563.1231.053 | Hersteller : COMUS |
Category: Reed Electromagnetic Relays Description: Relay: reed switch; SPDT; Ucoil: 5VDC; 400mA; max.100VDC; 5W; THT Body dimensions: 19.5x6.9x6.9mm Coil resistance: 200Ω Contacts configuration: SPDT Type of relay: reed switch Relay series: 3563 Rated coil voltage: 5V DC Coil voltage min.: 3.75V DC Coil voltage max.: 7V DC Switched voltage: max. 100V DC Contact current max.: 400mA Switching capacity: 5W Contact resistance: 0.2Ω Optional equipment: diode Mounting: THT Terminal pitch: 2.54mm Operating temperature: -20...85°C Case: DIP14 |
auf Bestellung 59 Stücke: Lieferzeit 14-21 Tag (e) |
|
