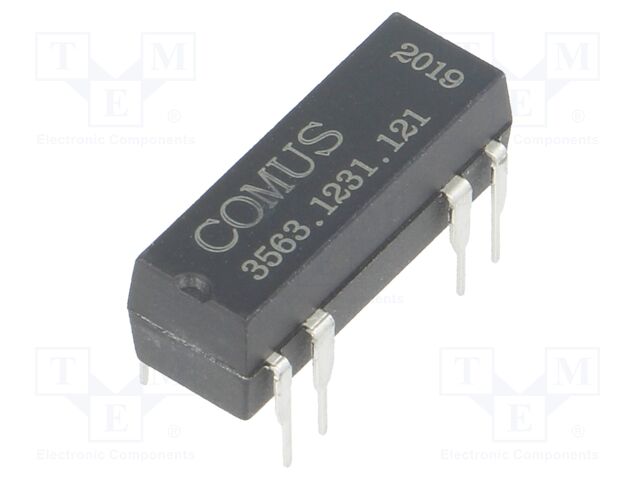

3563.1231.121 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPDT; Ucoil: 12VDC; 400mA; max.100VDC; 5W; THT
Contact resistance: 0.2Ω
Contact current max.: 400mA
Switching capacity: 5W
Coil voltage min.: 9V DC
Rated coil voltage: 12V DC
Coil voltage max.: 16V DC
Switched voltage: max. 100V DC
Coil resistance: 500Ω
Type of relay: reed switch
Manufacturer series: 3563
Contacts configuration: SPDT
Mounting: THT
Operating temperature: -20...85°C
Terminal pitch: 2.54mm
Case: DIP14
Body dimensions: 19.5x6.9x6.9mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 14 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 10+ | 7.81 EUR |
| 100+ | 7.09 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3563.1231.121 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPDT; Ucoil: 12VDC; 400mA; max.100VDC; 5W; THT, Contact resistance: 0.2Ω, Contact current max.: 400mA, Switching capacity: 5W, Coil voltage min.: 9V DC, Rated coil voltage: 12V DC, Coil voltage max.: 16V DC, Switched voltage: max. 100V DC, Coil resistance: 500Ω, Type of relay: reed switch, Manufacturer series: 3563, Contacts configuration: SPDT, Mounting: THT, Operating temperature: -20...85°C, Terminal pitch: 2.54mm, Case: DIP14, Body dimensions: 19.5x6.9x6.9mm, Anzahl je Verpackung: 1 Stücke.
