Produkte > COMUS > 3563.1231.241
3563.1231.241

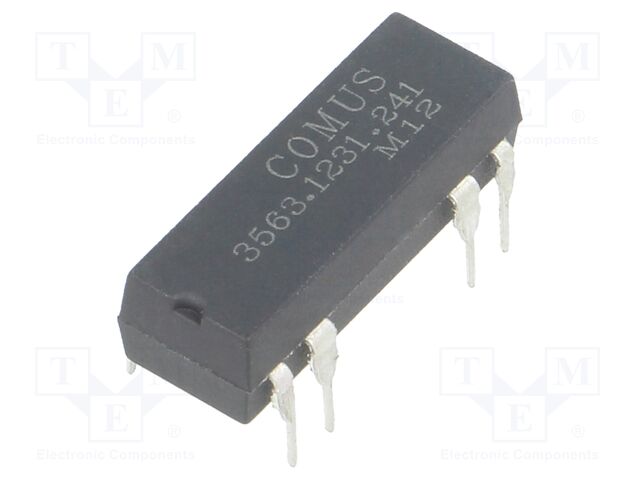

3563.1231.241 COMUS


pVersion=0046&contRep=ZT&docId=005056AB90B41ED9B6BE414F207440C4&compId=3570-3572-3563-Series.pdf?ci_sign=aa526db9533668703e1f1e9984ed24bd154dad9b Hersteller: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPDT; Ucoil: 24VDC; 400mA; max.100VDC; 5W; THT
Type of relay: reed switch
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 400mA
Switched voltage: max. 100V DC
Coil resistance: 2.15kΩ
Mounting: THT
Manufacturer series: 3563
Case: DIP14
Contact resistance: 0.2Ω
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Operating temperature: -20...85°C
Body dimensions: 19.5x6.9x6.9mm
Terminal pitch: 2.54mm
Switching capacity: 5W
Anzahl je Verpackung: 1 Stücke
auf Bestellung 147 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
9+8.69 EUR
10+7.44 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 3563.1231.241 COMUS

Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPDT; Ucoil: 24VDC; 400mA; max.100VDC; 5W; THT, Type of relay: reed switch, Contacts configuration: SPDT, Rated coil voltage: 24V DC, Contact current max.: 400mA, Switched voltage: max. 100V DC, Coil resistance: 2.15kΩ, Mounting: THT, Manufacturer series: 3563, Case: DIP14, Contact resistance: 0.2Ω, Coil voltage min.: 18V DC, Coil voltage max.: 32V DC, Operating temperature: -20...85°C, Body dimensions: 19.5x6.9x6.9mm, Terminal pitch: 2.54mm, Switching capacity: 5W, Anzahl je Verpackung: 1 Stücke.
