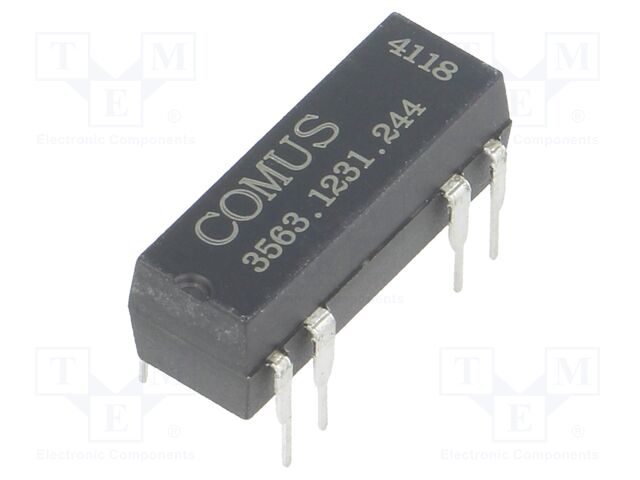

3563.1231.244 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPDT; Ucoil: 24VDC; 400mA; max.100VDC; 5W; THT
Type of relay: reed switch
Contacts configuration: SPDT
Rated coil voltage: 24V DC
Contact current max.: 400mA
Switched voltage: max. 100V DC
Switching capacity: 5W
Coil resistance: 2.15kΩ
Mounting: THT
Manufacturer series: 3563
Case: DIP14
Contact resistance: 0.2Ω
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Operating temperature: -20...85°C
Body dimensions: 19.5x6.9x6.9mm
Terminal pitch: 2.54mm
Optional equipment: diode; electrostatic shield
Anzahl je Verpackung: 1 Stücke
auf Bestellung 40 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 8+ | 8.95 EUR |
| 9+ | 8.47 EUR |
| 100+ | 8.45 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3563.1231.244 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPDT; Ucoil: 24VDC; 400mA; max.100VDC; 5W; THT, Type of relay: reed switch, Contacts configuration: SPDT, Rated coil voltage: 24V DC, Contact current max.: 400mA, Switched voltage: max. 100V DC, Switching capacity: 5W, Coil resistance: 2.15kΩ, Mounting: THT, Manufacturer series: 3563, Case: DIP14, Contact resistance: 0.2Ω, Coil voltage min.: 18V DC, Coil voltage max.: 32V DC, Operating temperature: -20...85°C, Body dimensions: 19.5x6.9x6.9mm, Terminal pitch: 2.54mm, Optional equipment: diode; electrostatic shield, Anzahl je Verpackung: 1 Stücke.
