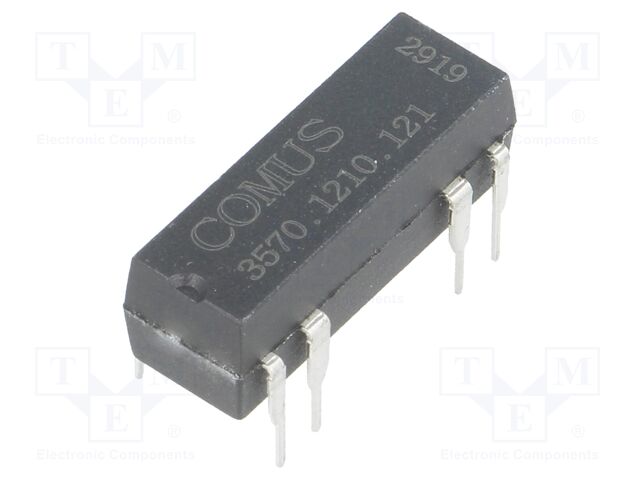

3570.1210.121 COMUS
Hersteller: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W
Mounting: THT
Terminal pitch: 2.54mm
Case: DIP14
Operating temperature: -20...85°C
Body dimensions: 19.5x6.9x6.9mm
Coil resistance: 1kΩ
Contacts configuration: SPST-NO
Type of relay: reed switch
Relay series: 3570
Rated coil voltage: 12V DC
Coil voltage min.: 9V DC
Coil voltage max.: 16V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Anzahl je Verpackung: 1 Stücke
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W
Mounting: THT
Terminal pitch: 2.54mm
Case: DIP14
Operating temperature: -20...85°C
Body dimensions: 19.5x6.9x6.9mm
Coil resistance: 1kΩ
Contacts configuration: SPST-NO
Type of relay: reed switch
Relay series: 3570
Rated coil voltage: 12V DC
Coil voltage min.: 9V DC
Coil voltage max.: 16V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Anzahl je Verpackung: 1 Stücke
auf Bestellung 149 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
26+ | 2.83 EUR |
30+ | 2.45 EUR |
32+ | 2.3 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3570.1210.121 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W, Mounting: THT, Terminal pitch: 2.54mm, Case: DIP14, Operating temperature: -20...85°C, Body dimensions: 19.5x6.9x6.9mm, Coil resistance: 1kΩ, Contacts configuration: SPST-NO, Type of relay: reed switch, Relay series: 3570, Rated coil voltage: 12V DC, Coil voltage min.: 9V DC, Coil voltage max.: 16V DC, Switched voltage: max. 150V DC, Contact current max.: 0.5A, Switching capacity: 10W, Contact resistance: 0.15Ω, Anzahl je Verpackung: 1 Stücke.
