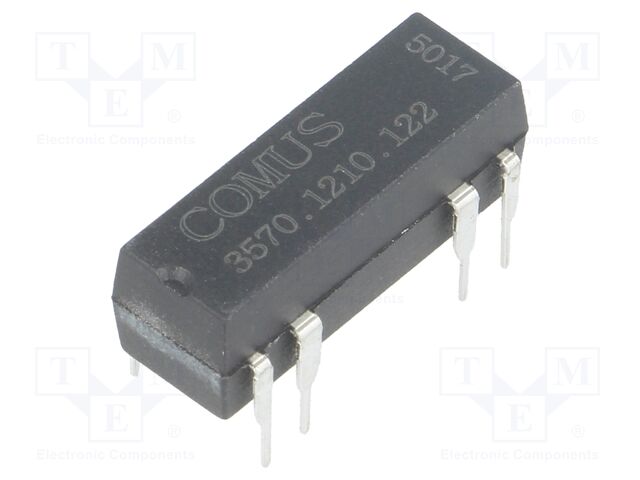

3570.1210.122 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 0.5A
Switched voltage: max. 150V DC
Coil resistance: 1kΩ
Mounting: THT
Manufacturer series: 3570
Case: DIP14
Contact resistance: 0.15Ω
Coil voltage min.: 9V DC
Coil voltage max.: 16V DC
Operating temperature: -20...85°C
Body dimensions: 19.5x6.9x6.9mm
Terminal pitch: 2.54mm
Switching capacity: 10W
Optional equipment: electrostatic shield
Anzahl je Verpackung: 1 Stücke
auf Bestellung 79 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 25+ | 2.95 EUR |
| 100+ | 2.67 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3570.1210.122 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W, Type of relay: reed switch, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 0.5A, Switched voltage: max. 150V DC, Coil resistance: 1kΩ, Mounting: THT, Manufacturer series: 3570, Case: DIP14, Contact resistance: 0.15Ω, Coil voltage min.: 9V DC, Coil voltage max.: 16V DC, Operating temperature: -20...85°C, Body dimensions: 19.5x6.9x6.9mm, Terminal pitch: 2.54mm, Switching capacity: 10W, Optional equipment: electrostatic shield, Anzahl je Verpackung: 1 Stücke.
