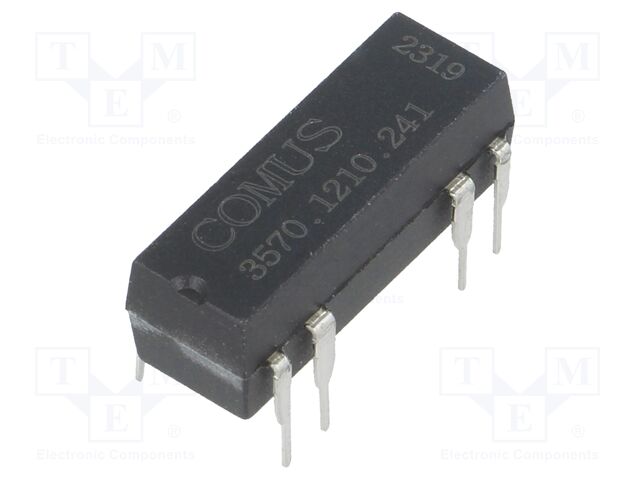

3570.1210.241 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W
Case: DIP14
Mounting: THT
Operating temperature: -20...85°C
Coil resistance: 2.15kΩ
Contacts configuration: SPST-NO
Type of relay: reed switch
Relay series: 3570
Rated coil voltage: 24V DC
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Terminal pitch: 2.54mm
Body dimensions: 19.5x6.9x6.9mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 94 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 25+ | 2.89 EUR |
| 28+ | 2.62 EUR |
| 29+ | 2.47 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3570.1210.241 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W, Case: DIP14, Mounting: THT, Operating temperature: -20...85°C, Coil resistance: 2.15kΩ, Contacts configuration: SPST-NO, Type of relay: reed switch, Relay series: 3570, Rated coil voltage: 24V DC, Coil voltage min.: 18V DC, Coil voltage max.: 32V DC, Switched voltage: max. 150V DC, Contact current max.: 0.5A, Switching capacity: 10W, Contact resistance: 0.15Ω, Terminal pitch: 2.54mm, Body dimensions: 19.5x6.9x6.9mm, Anzahl je Verpackung: 1 Stücke.
