Produkte > COMUS > 3570.1210.242
3570.1210.242

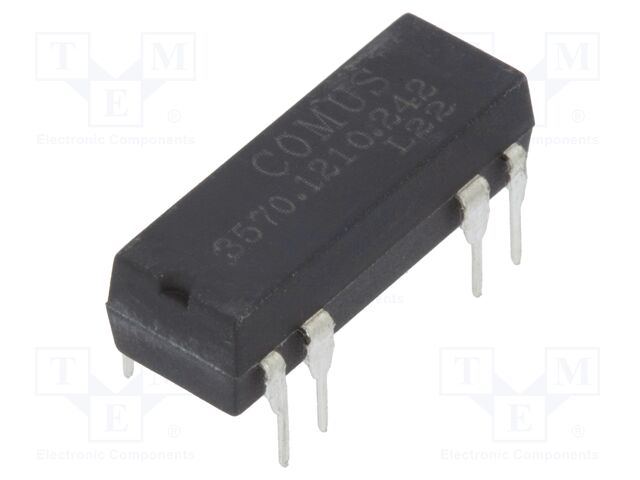

3570.1210.242 COMUS


pVersion=0046&contRep=ZT&docId=005056AB90B41ED9B6BE414F207440C4&compId=3570-3572-3563-Series.pdf?ci_sign=aa526db9533668703e1f1e9984ed24bd154dad9b Hersteller: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W
Body dimensions: 19.5x6.9x6.9mm
Operating temperature: -20...85°C
Coil resistance: 2.15kΩ
Contacts configuration: SPST-NO
Type of relay: reed switch
Rated coil voltage: 24V DC
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Optional equipment: electrostatic shield
Manufacturer series: 3570
Mounting: THT
Terminal pitch: 2.54mm
Case: DIP14
Anzahl je Verpackung: 1 Stücke
auf Bestellung 116 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
31+2.36 EUR
34+2.13 EUR
36+2.02 EUR
Mindestbestellmenge: 31
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 3570.1210.242 COMUS

Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W, Body dimensions: 19.5x6.9x6.9mm, Operating temperature: -20...85°C, Coil resistance: 2.15kΩ, Contacts configuration: SPST-NO, Type of relay: reed switch, Rated coil voltage: 24V DC, Coil voltage min.: 18V DC, Coil voltage max.: 32V DC, Switched voltage: max. 150V DC, Contact current max.: 0.5A, Switching capacity: 10W, Contact resistance: 0.15Ω, Optional equipment: electrostatic shield, Manufacturer series: 3570, Mounting: THT, Terminal pitch: 2.54mm, Case: DIP14, Anzahl je Verpackung: 1 Stücke.
