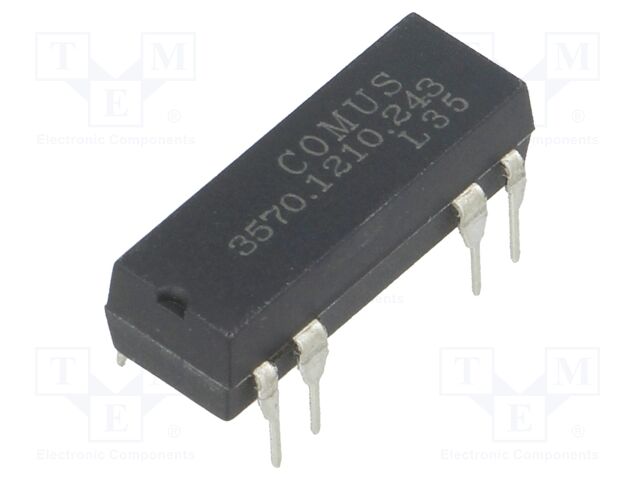

3570.1210.243 COMUS

Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W
Case: DIP14
Body dimensions: 19.5x6.9x6.9mm
Coil resistance: 2.15kΩ
Contacts configuration: SPST-NO
Type of relay: reed switch
Rated coil voltage: 24V DC
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Optional equipment: diode
Manufacturer series: 3570
Mounting: THT
Terminal pitch: 2.54mm
Operating temperature: -20...85°C
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 3570.1210.243 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W, Case: DIP14, Body dimensions: 19.5x6.9x6.9mm, Coil resistance: 2.15kΩ, Contacts configuration: SPST-NO, Type of relay: reed switch, Rated coil voltage: 24V DC, Coil voltage min.: 18V DC, Coil voltage max.: 32V DC, Switched voltage: max. 150V DC, Contact current max.: 0.5A, Switching capacity: 10W, Contact resistance: 0.15Ω, Optional equipment: diode, Manufacturer series: 3570, Mounting: THT, Terminal pitch: 2.54mm, Operating temperature: -20...85°C, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 3570.1210.243
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
---|---|---|---|---|---|
![]() |
3570.1210.243 | Hersteller : COMUS |
![]() Description: Relay: reed switch; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W Case: DIP14 Body dimensions: 19.5x6.9x6.9mm Coil resistance: 2.15kΩ Contacts configuration: SPST-NO Type of relay: reed switch Rated coil voltage: 24V DC Coil voltage min.: 18V DC Coil voltage max.: 32V DC Switched voltage: max. 150V DC Contact current max.: 0.5A Switching capacity: 10W Contact resistance: 0.15Ω Optional equipment: diode Manufacturer series: 3570 Mounting: THT Terminal pitch: 2.54mm Operating temperature: -20...85°C |
Produkt ist nicht verfügbar |
