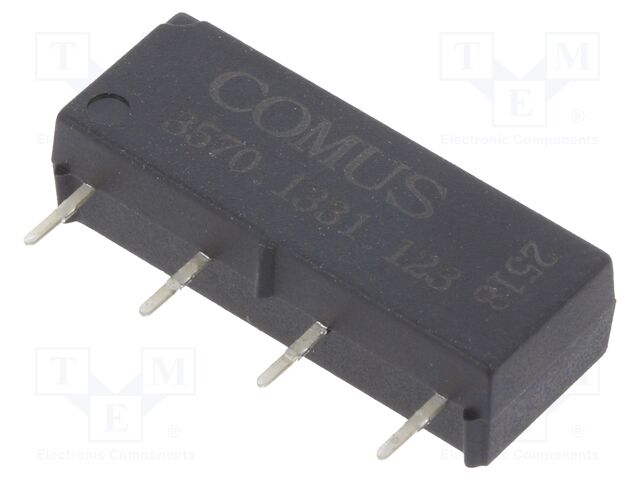

3570.1331.123 COMUS
Hersteller: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 0.5A
Switched voltage: max. 150V DC
Switching capacity: 10W
Coil resistance: 1kΩ
Mounting: THT
Case: SIP
Contact resistance: 0.2Ω
Coil voltage min.: 9V DC
Coil voltage max.: 16V DC
Operating temperature: -40...85°C
Body dimensions: 19x7.7x5.08mm
Relay series: 3570
Terminal pitch: 5.08mm
Optional equipment: diode
Anzahl je Verpackung: 1 Stücke
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 0.5A
Switched voltage: max. 150V DC
Switching capacity: 10W
Coil resistance: 1kΩ
Mounting: THT
Case: SIP
Contact resistance: 0.2Ω
Coil voltage min.: 9V DC
Coil voltage max.: 16V DC
Operating temperature: -40...85°C
Body dimensions: 19x7.7x5.08mm
Relay series: 3570
Terminal pitch: 5.08mm
Optional equipment: diode
Anzahl je Verpackung: 1 Stücke
auf Bestellung 152 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
29+ | 2.49 EUR |
34+ | 2.13 EUR |
36+ | 2 EUR |
