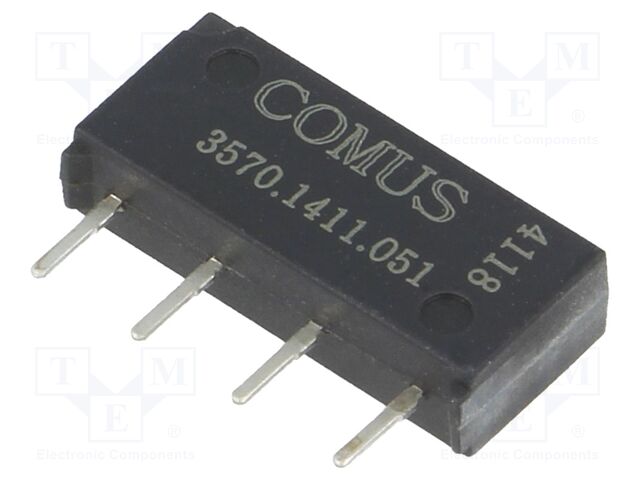

3570.1411.051 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W
Manufacturer series: 3570
Operating temperature: -40...85°C
Case: SIP
Body dimensions: 15.24x6.98x3.81mm
Coil resistance: 500Ω
Contacts configuration: SPST-NO
Type of relay: reed switch
Rated coil voltage: 5V DC
Coil voltage min.: 3.75V DC
Coil voltage max.: 7V DC
Switched voltage: max. 200V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Relay features: high reliability
Mounting: THT
Terminal pitch: 3.81mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 170 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 19+ | 3.8 EUR |
| 21+ | 3.42 EUR |
| 23+ | 3.23 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3570.1411.051 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W, Manufacturer series: 3570, Operating temperature: -40...85°C, Case: SIP, Body dimensions: 15.24x6.98x3.81mm, Coil resistance: 500Ω, Contacts configuration: SPST-NO, Type of relay: reed switch, Rated coil voltage: 5V DC, Coil voltage min.: 3.75V DC, Coil voltage max.: 7V DC, Switched voltage: max. 200V DC, Contact current max.: 0.5A, Switching capacity: 10W, Contact resistance: 0.15Ω, Relay features: high reliability, Mounting: THT, Terminal pitch: 3.81mm, Anzahl je Verpackung: 1 Stücke.
