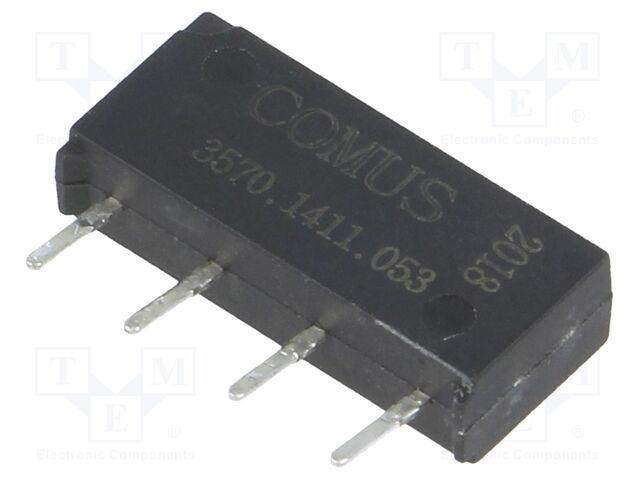

3570.1411.053 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W
Mounting: THT
Terminal pitch: 3.81mm
Operating temperature: -40...85°C
Manufacturer series: 3570
Optional equipment: diode
Contacts configuration: SPST-NO
Type of relay: reed switch
Relay features: high reliability
Body dimensions: 15.24x6.98x3.81mm
Contact resistance: 0.15Ω
Contact current max.: 0.5A
Coil voltage min.: 3.75V DC
Rated coil voltage: 5V DC
Coil voltage max.: 7V DC
Switching capacity: 10W
Switched voltage: max. 200V DC
Coil resistance: 500Ω
Case: SIP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 30 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 20+ | 3.76 EUR |
| 22+ | 3.4 EUR |
| 23+ | 3.22 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3570.1411.053 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W, Mounting: THT, Terminal pitch: 3.81mm, Operating temperature: -40...85°C, Manufacturer series: 3570, Optional equipment: diode, Contacts configuration: SPST-NO, Type of relay: reed switch, Relay features: high reliability, Body dimensions: 15.24x6.98x3.81mm, Contact resistance: 0.15Ω, Contact current max.: 0.5A, Coil voltage min.: 3.75V DC, Rated coil voltage: 5V DC, Coil voltage max.: 7V DC, Switching capacity: 10W, Switched voltage: max. 200V DC, Coil resistance: 500Ω, Case: SIP, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 3570.1411.053 nach Preis ab 3.22 EUR bis 3.76 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
3570.1411.053 | Hersteller : COMUS |
Category: Reed Electromagnetic Relays Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W Mounting: THT Terminal pitch: 3.81mm Operating temperature: -40...85°C Manufacturer series: 3570 Optional equipment: diode Contacts configuration: SPST-NO Type of relay: reed switch Relay features: high reliability Body dimensions: 15.24x6.98x3.81mm Contact resistance: 0.15Ω Contact current max.: 0.5A Coil voltage min.: 3.75V DC Rated coil voltage: 5V DC Coil voltage max.: 7V DC Switching capacity: 10W Switched voltage: max. 200V DC Coil resistance: 500Ω Case: SIP |
auf Bestellung 30 Stücke: Lieferzeit 14-21 Tag (e) |
|
