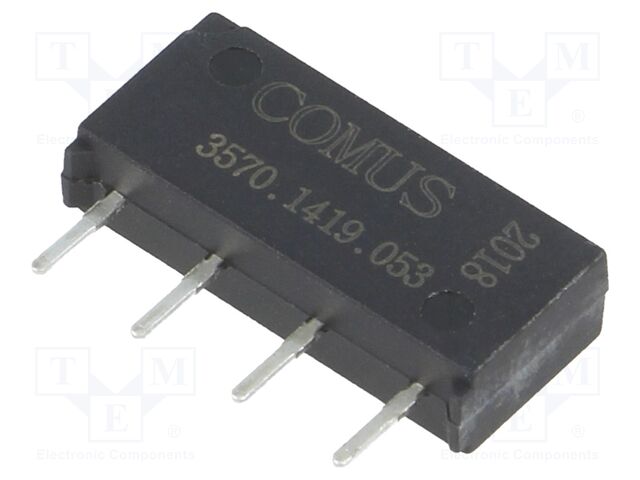

3570.1419.053 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W
Mounting: THT
Terminal pitch: 3.81mm
Operating temperature: -40...85°C
Manufacturer series: 3570
Optional equipment: diode
Contacts configuration: SPST-NO
Type of relay: reed switch
Relay features: high reliability
Body dimensions: 15.24x6.98x3.81mm
Contact resistance: 0.15Ω
Contact current max.: 0.5A
Coil voltage min.: 3.75V DC
Rated coil voltage: 5V DC
Coil voltage max.: 7V DC
Switching capacity: 10W
Switched voltage: max. 200V DC
Coil resistance: 500Ω
Case: SIP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 100 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 18+ | 4.13 EUR |
| 20+ | 3.73 EUR |
| 21+ | 3.53 EUR |
