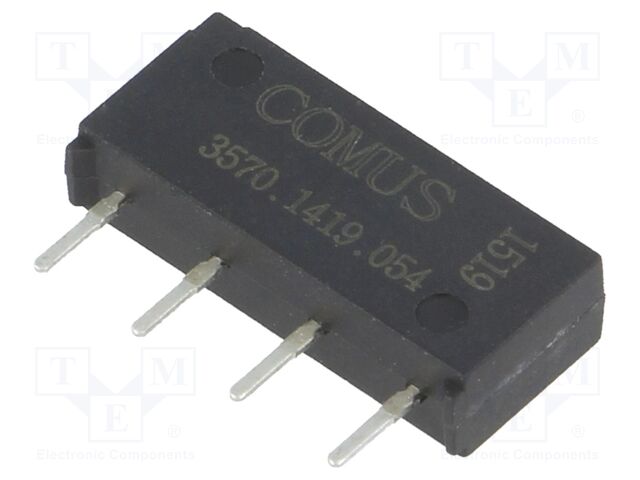

3570.1419.054 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W
Type of relay: reed switch
Contacts configuration: SPST-NO
Rated coil voltage: 5V DC
Contact current max.: 0.5A
Switched voltage: max. 200V DC
Switching capacity: 10W
Coil resistance: 500Ω
Mounting: THT
Manufacturer series: 3570
Case: SIP
Contact resistance: 0.15Ω
Coil voltage min.: 3.75V DC
Coil voltage max.: 7V DC
Operating temperature: -40...85°C
Body dimensions: 15.24x6.98x3.81mm
Terminal pitch: 3.81mm
Relay features: high reliability
Optional equipment: diode; electrostatic shield
Anzahl je Verpackung: 1 Stücke
auf Bestellung 249 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 15+ | 4.92 EUR |
| 16+ | 4.5 EUR |
| 17+ | 4.25 EUR |
