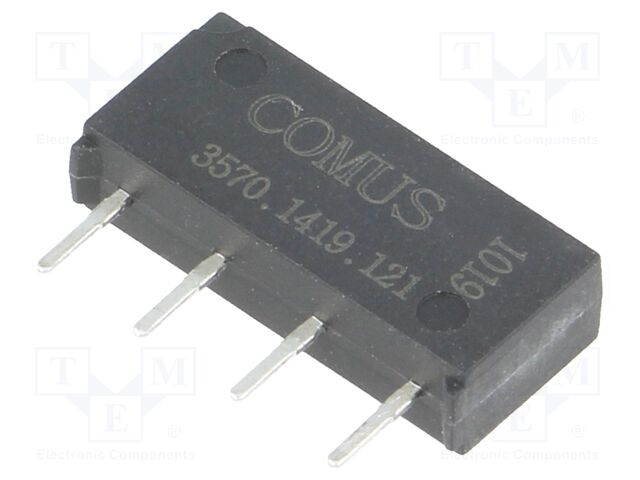

3570.1419.121 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W
Mounting: THT
Terminal pitch: 3.81mm
Case: SIP
Operating temperature: -40...85°C
Body dimensions: 15.24x6.98x3.81mm
Coil resistance: 1kΩ
Contacts configuration: SPST-NO
Type of relay: reed switch
Relay series: 3570
Rated coil voltage: 12V DC
Coil voltage min.: 9V DC
Coil voltage max.: 16V DC
Switched voltage: max. 200V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Relay features: high reliability
Anzahl je Verpackung: 1 Stücke
auf Bestellung 70 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 19+ | 3.78 EUR |
| 21+ | 3.42 EUR |
| 23+ | 3.23 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3570.1419.121 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W, Mounting: THT, Terminal pitch: 3.81mm, Case: SIP, Operating temperature: -40...85°C, Body dimensions: 15.24x6.98x3.81mm, Coil resistance: 1kΩ, Contacts configuration: SPST-NO, Type of relay: reed switch, Relay series: 3570, Rated coil voltage: 12V DC, Coil voltage min.: 9V DC, Coil voltage max.: 16V DC, Switched voltage: max. 200V DC, Contact current max.: 0.5A, Switching capacity: 10W, Contact resistance: 0.15Ω, Relay features: high reliability, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 3570.1419.121 nach Preis ab 3.23 EUR bis 3.78 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
3570.1419.121 | Hersteller : COMUS |
Category: Reed Electromagnetic Relays Description: Relay: reed switch; SPST-NO; Ucoil: 12VDC; 500mA; max.200VDC; 10W Mounting: THT Terminal pitch: 3.81mm Case: SIP Operating temperature: -40...85°C Body dimensions: 15.24x6.98x3.81mm Coil resistance: 1kΩ Contacts configuration: SPST-NO Type of relay: reed switch Relay series: 3570 Rated coil voltage: 12V DC Coil voltage min.: 9V DC Coil voltage max.: 16V DC Switched voltage: max. 200V DC Contact current max.: 0.5A Switching capacity: 10W Contact resistance: 0.15Ω Relay features: high reliability |
auf Bestellung 70 Stücke: Lieferzeit 14-21 Tag (e) |
|
