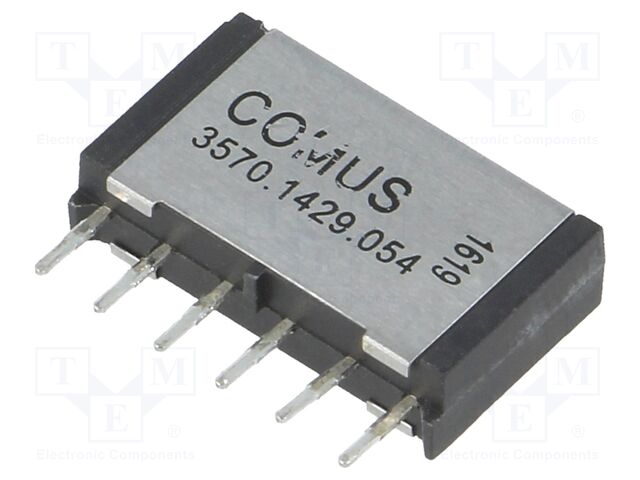

3570.1429.054 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 15W; THT
Mounting: THT
Operating temperature: -40...85°C
Terminal pitch: 2.54mm
Body dimensions: 15.2x8.89x3.81mm
Contact resistance: 0.15Ω
Contact current max.: 1A
Coil voltage min.: 3.8V DC
Rated coil voltage: 5V DC
Coil voltage max.: 7V DC
Switching capacity: 15W
Switched voltage: max. 200V DC
Manufacturer series: 3570
Coil resistance: 375Ω
Optional equipment: diode; electrostatic shield
Case: SIP
Contacts configuration: DPST-NO
Relay features: high reliability
Type of relay: reed switch
auf Bestellung 102 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 10+ | 7.81 EUR |
| 90+ | 7.06 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3570.1429.054 COMUS
Category: Reed Electromagnetic Relays, Description: Relay: reed switch; DPST-NO; Ucoil: 5VDC; 1A; max.200VDC; 15W; THT, Mounting: THT, Operating temperature: -40...85°C, Terminal pitch: 2.54mm, Body dimensions: 15.2x8.89x3.81mm, Contact resistance: 0.15Ω, Contact current max.: 1A, Coil voltage min.: 3.8V DC, Rated coil voltage: 5V DC, Coil voltage max.: 7V DC, Switching capacity: 15W, Switched voltage: max. 200V DC, Manufacturer series: 3570, Coil resistance: 375Ω, Optional equipment: diode; electrostatic shield, Case: SIP, Contacts configuration: DPST-NO, Relay features: high reliability, Type of relay: reed switch.
