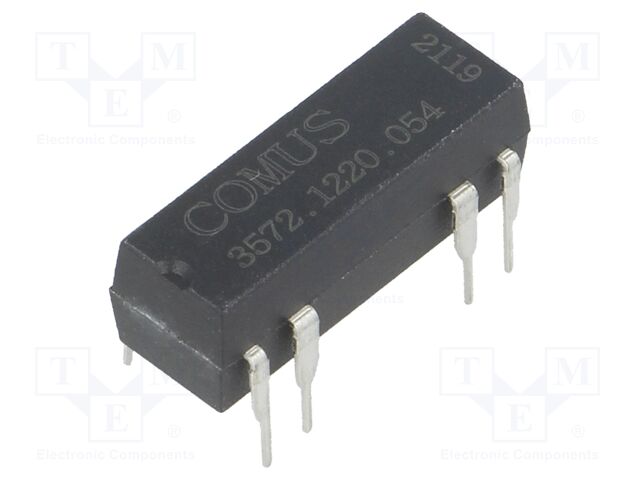

3572.1220.054 COMUS
Hersteller: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W
Mounting: THT
Terminal pitch: 2.54mm
Operating temperature: -20...85°C
Body dimensions: 19.5x6.9x6.9mm
Coil resistance: 0.14kΩ
Contacts configuration: DPST-NO
Type of relay: reed switch
Relay series: 3572
Rated coil voltage: 5V DC
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Optional equipment: diode; electrostatic shield
Case: DIP14
Anzahl je Verpackung: 1 Stücke
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W
Mounting: THT
Terminal pitch: 2.54mm
Operating temperature: -20...85°C
Body dimensions: 19.5x6.9x6.9mm
Coil resistance: 0.14kΩ
Contacts configuration: DPST-NO
Type of relay: reed switch
Relay series: 3572
Rated coil voltage: 5V DC
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Optional equipment: diode; electrostatic shield
Case: DIP14
Anzahl je Verpackung: 1 Stücke
auf Bestellung 15 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
15+ | 4.76 EUR |
