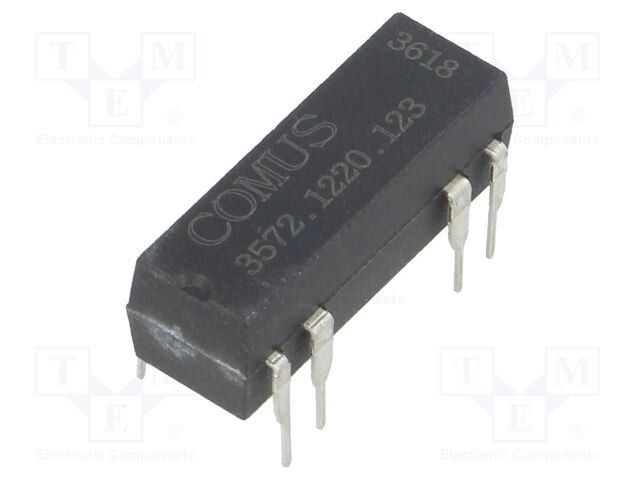

3572.1220.123 COMUS
Hersteller: COMUSCategory: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W
Body dimensions: 19.5x6.9x6.9mm
Case: DIP14
Operating temperature: -20...85°C
Mounting: THT
Terminal pitch: 2.54mm
Contacts configuration: DPST-NO
Type of relay: reed switch
Relay series: 3572
Rated coil voltage: 12V DC
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Optional equipment: diode
Coil resistance: 500Ω
Anzahl je Verpackung: 1 Stücke
auf Bestellung 56 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 18+ | 3.98 EUR |
| 21+ | 3.42 EUR |
| 23+ | 3.23 EUR |
