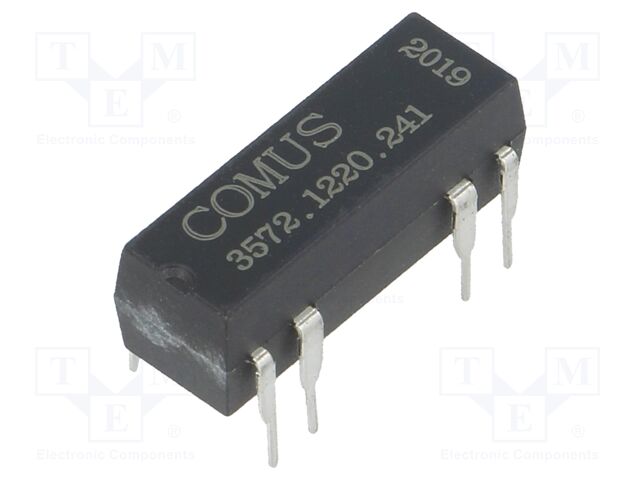

3572.1220.241 COMUS
Hersteller: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W
Body dimensions: 19.5x6.9x6.9mm
Case: DIP14
Operating temperature: -20...85°C
Mounting: THT
Terminal pitch: 2.54mm
Contacts configuration: DPST-NO
Type of relay: reed switch
Relay series: 3572
Rated coil voltage: 24V DC
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Coil resistance: 2.15kΩ
Anzahl je Verpackung: 1 Stücke
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W
Body dimensions: 19.5x6.9x6.9mm
Case: DIP14
Operating temperature: -20...85°C
Mounting: THT
Terminal pitch: 2.54mm
Contacts configuration: DPST-NO
Type of relay: reed switch
Relay series: 3572
Rated coil voltage: 24V DC
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Coil resistance: 2.15kΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 175 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
18+ | 4.09 EUR |
21+ | 3.52 EUR |
22+ | 3.33 EUR |
