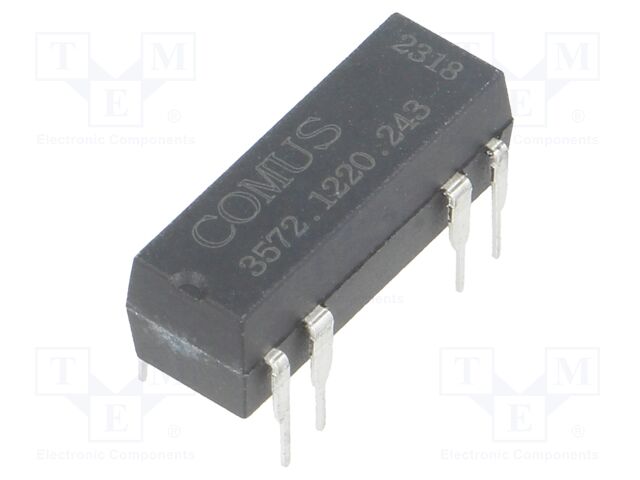

3572.1220.243 COMUS

Category: Reed Electromagnetic Relays, Description: Relay: reed switch; Ucoil: 24VDC; DPST-NO; 500mA; max.150VDC; 10W, Case: DIP14, Mounting: THT, Manufacturer series: 3572, Body dimensions: 19.5x6.9x6.9mm, Operating temperature: -20...85°C, Contact current max.: 0.5A, Optional equipment: diode, Contacts configuration: DPST-NO, Switching capacity: 10W, Switched voltage: max. 150V DC, Coil voltage max.: 32V DC, Coil voltage: 24V DC, Contact resistance: 0.15Ω, Type of relay: reed switch, Terminal pitch: 2.54mm, Coil resistance: 2.15kΩ, Coil voltage min.: 18V DC.
