Produkte > COMUS > 3572.1220.244

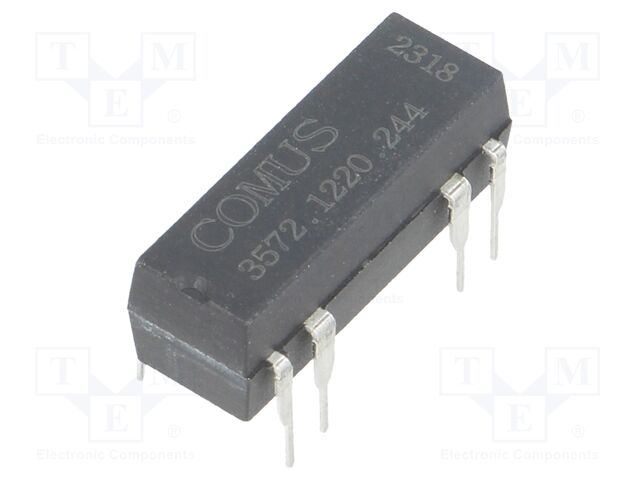

3572.1220.244

3572.1220.244 COMUS


3570-3572-3563-Series.pdf Hersteller: COMUS
Category: Reed Electromagnetic Relays
Description: Relay: reed switch; DPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W
Body dimensions: 19.5x6.9x6.9mm
Case: DIP14
Operating temperature: -20...85°C
Mounting: THT
Terminal pitch: 2.54mm
Contacts configuration: DPST-NO
Type of relay: reed switch
Relay series: 3572
Rated coil voltage: 24V DC
Coil voltage min.: 18V DC
Coil voltage max.: 32V DC
Switched voltage: max. 150V DC
Contact current max.: 0.5A
Switching capacity: 10W
Contact resistance: 0.15Ω
Optional equipment: diode; electrostatic shield
Coil resistance: 2.15kΩ
Anzahl je Verpackung: 1 Stücke
auf Bestellung 114 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis ohne MwSt
15+4.95 EUR
17+ 4.23 EUR
18+ 3.99 EUR
Mindestbestellmenge: 15
Produktrezensionen
Produktbewertung abgeben

Technische Details 3572.1220.244 COMUS

Category: Reed Electromagnetic Relays, Description: Relay: reed switch; DPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W, Body dimensions: 19.5x6.9x6.9mm, Case: DIP14, Operating temperature: -20...85°C, Mounting: THT, Terminal pitch: 2.54mm, Contacts configuration: DPST-NO, Type of relay: reed switch, Relay series: 3572, Rated coil voltage: 24V DC, Coil voltage min.: 18V DC, Coil voltage max.: 32V DC, Switched voltage: max. 150V DC, Contact current max.: 0.5A, Switching capacity: 10W, Contact resistance: 0.15Ω, Optional equipment: diode; electrostatic shield, Coil resistance: 2.15kΩ, Anzahl je Verpackung: 1 Stücke.
