Hersteller: BOSSARD
Category: Screws
Description: Screw; for wood; 4.5x45; Head: countersunk; Torx®; TX20; SPAX®
Type of mounting element: screw
Screw application: for wood
Thread: 4,5
Length: 45mm
Kind of head: countersunk
Kind of cut: Torx®
Cut size: TX20
Material: A2 stainless steel
Manufacturer series: SPAX®
Head diameter: 8.8mm
BN standard: BN 20692

Hersteller: Samtec Inc.

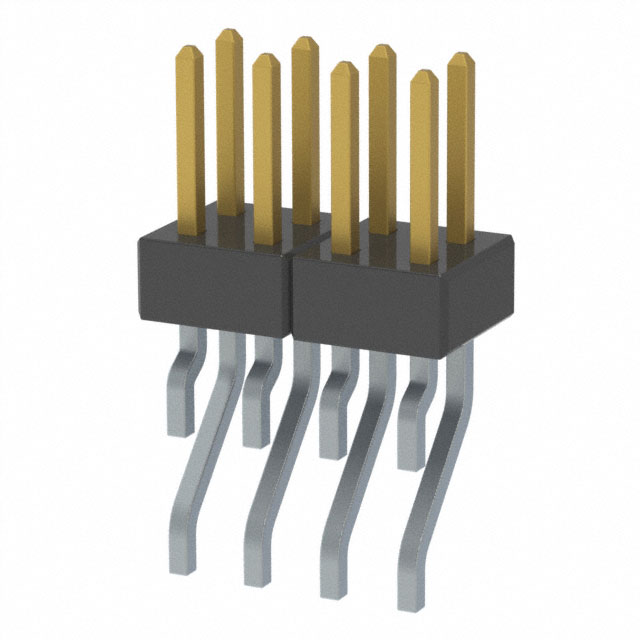

Description: CONN HEADER SMD R/A 8POS 2MM
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 8
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.157" (4.00mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.175" (4.45mm)
