Produkte > 3M > 3801/64 (100FT)

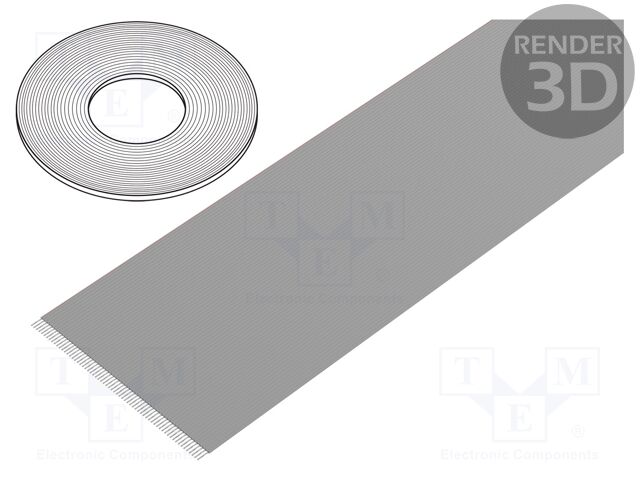

3801/64 (100FT)

3801/64 (100FT) 3M

pVersion=0046&contRep=ZT&docId=E1C03E492BE3A2F1A6F5005056AB5A8F&compId=10-3M-datasheet-7050.pdf?ci_sign=9cbcc7903938ba18e09840a144d5bbbbafed09f5 pVersion=0046&contRep=ZT&docId=005056AB90B41EDBAFA6F8226270C0C7&compId=3M%20Cable%20and%20Accessories.pdf?ci_sign=8a255b5cdcc8d685161a6dc818725132c25b9b6d pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8AEFA6BEE8E100D5&compId=3M_Cable_SelectionGuide_Letter_HR.pdf?ci_sign=feeca919a34f12a32b0c1c73da2db29544817ea0 Hersteller: 3M
Category: Ribbon Cables - Single Color
Description: Wire: ribbon; 1.27mm; stranded; Cu; unshielded; PVC; grey; 30.5m
Type of wire: ribbon
Tape pitch: 1.27mm
Core structure: stranded
Kind of core: Cu; tinned
Number of cores: 64
Core diameter: 26AWG
Shield structure: unshielded
Wire insulation material: PVC
Insulation colour: grey
Operating temperature: -20...105°C
Rated voltage: 50V
A dimension: 81.28mm
B dimension: 80.07mm
Package contents: 30.5m
Cable structure: 64x26AWG
Conform to the norm: CSA AWM I A/B FT1; UL 2651; VW-1
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+308.21 EUR
10+295.82 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 3801/64 (100FT) 3M

Category: Ribbon Cables - Single Color, Description: Wire: ribbon; 1.27mm; stranded; Cu; unshielded; PVC; grey; 30.5m, Type of wire: ribbon, Tape pitch: 1.27mm, Core structure: stranded, Kind of core: Cu; tinned, Number of cores: 64, Core diameter: 26AWG, Shield structure: unshielded, Wire insulation material: PVC, Insulation colour: grey, Operating temperature: -20...105°C, Rated voltage: 50V, A dimension: 81.28mm, B dimension: 80.07mm, Package contents: 30.5m, Cable structure: 64x26AWG, Conform to the norm: CSA AWM I A/B FT1; UL 2651; VW-1, Anzahl je Verpackung: 1 Stücke.
