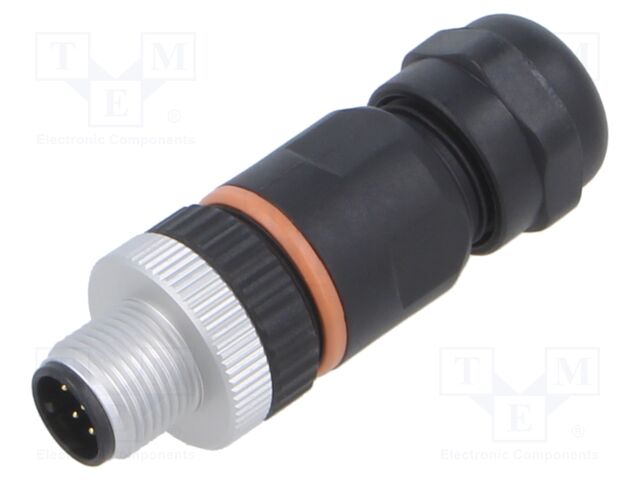

381166321 LAPP
Hersteller: LAPP
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 8; male; 30V; straight; IP67; for cable
Operating temperature: -25...85°C
Mechanical mounting: for cable
Body material: polyamide
Electrical mounting: screw terminal
Type of connector: M12
Wire cross-section: 1mm2
Locking system: external thread
Kind of connector: male
Connector: plug
IP rating: IP67
Cable external diameter: 4...8mm
Contact plating: gold-plated
Spatial orientation: straight
Rated voltage: 30V
Contact material: copper alloy
Number of pins: 8
Current rating: 2A
Polarisation: A code - DeviceNet / CANopen
| Anzahl | Privatkunde |
|---|---|
| 4+ | 21.61 EUR |
| 5+ | 17.68 EUR |
| 10+ | 15.71 EUR |
| 15+ | 13.96 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 381166321 LAPP
Category: M12 plugs and sockets, Description: Connector: M12; plug; PIN: 8; male; 30V; straight; IP67; for cable, Operating temperature: -25...85°C, Mechanical mounting: for cable, Body material: polyamide, Electrical mounting: screw terminal, Type of connector: M12, Wire cross-section: 1mm2, Locking system: external thread, Kind of connector: male, Connector: plug, IP rating: IP67, Cable external diameter: 4...8mm, Contact plating: gold-plated, Spatial orientation: straight, Rated voltage: 30V, Contact material: copper alloy, Number of pins: 8, Current rating: 2A, Polarisation: A code - DeviceNet / CANopen.
