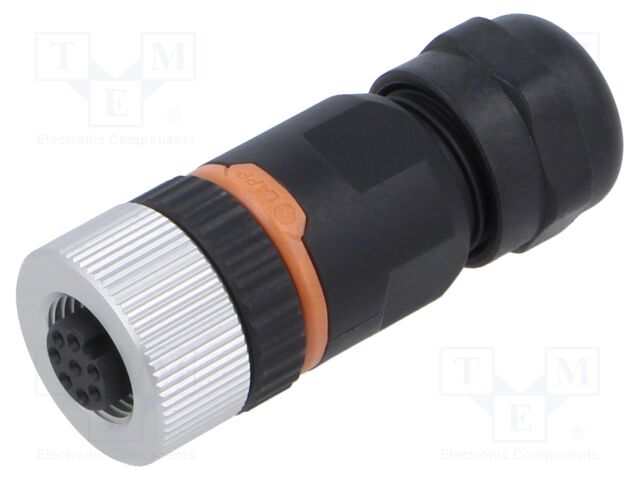

381166328 LAPP
Hersteller: LAPP
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 8; female; 30V; straight; IP67; for cable
IP rating: IP67
Operating temperature: -25...85°C
Wire cross-section: 1mm2
Locking system: internal thread
Polarisation: A code - DeviceNet / CANopen
Electrical mounting: screw terminal
Mechanical mounting: for cable
Cable external diameter: 4...8mm
Spatial orientation: straight
Type of connector: M12
Connector: plug
Kind of connector: female
Contact plating: gold-plated
Rated voltage: 30V
Current rating: 2A
Body material: polyamide
Number of pins: 8
Contact material: copper alloy
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 8; female; 30V; straight; IP67; for cable
IP rating: IP67
Operating temperature: -25...85°C
Wire cross-section: 1mm2
Locking system: internal thread
Polarisation: A code - DeviceNet / CANopen
Electrical mounting: screw terminal
Mechanical mounting: for cable
Cable external diameter: 4...8mm
Spatial orientation: straight
Type of connector: M12
Connector: plug
Kind of connector: female
Contact plating: gold-plated
Rated voltage: 30V
Current rating: 2A
Body material: polyamide
Number of pins: 8
Contact material: copper alloy
auf Bestellung 33 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 18.96 EUR |
| 6+ | 12.47 EUR |
| 7+ | 11.79 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 381166328 LAPP
Category: M12 plugs and sockets, Description: Connector: M12; plug; PIN: 8; female; 30V; straight; IP67; for cable, IP rating: IP67, Operating temperature: -25...85°C, Wire cross-section: 1mm2, Locking system: internal thread, Polarisation: A code - DeviceNet / CANopen, Electrical mounting: screw terminal, Mechanical mounting: for cable, Cable external diameter: 4...8mm, Spatial orientation: straight, Type of connector: M12, Connector: plug, Kind of connector: female, Contact plating: gold-plated, Rated voltage: 30V, Current rating: 2A, Body material: polyamide, Number of pins: 8, Contact material: copper alloy.
