381166334 LAPP
Hersteller: LAPP
Category: M12 plugs and sockets

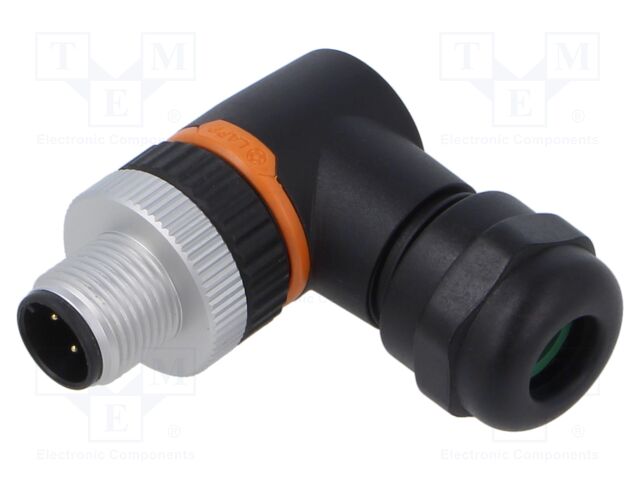

Description: Connector: M12; plug; PIN: 4; male; 250V; angled 90°; IP67; for cable
Type of connector: M12
Connector: plug
Number of pins: 4
Kind of connector: male
Electrical mounting: screw terminal
Mechanical mounting: for cable
Polarisation: D code - Ethernet
Locking system: external thread
Current rating: 4A
IP rating: IP67
Body material: polyamide
Contact material: copper alloy
Wire cross-section: 1.5mm2
Cable external diameter: 4...8mm
Spatial orientation: angled 90°
Contact plating: gold-plated
Rated voltage: 250V
Operating temperature: -25...85°C
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; male; 250V; angled 90°; IP67; for cable
Type of connector: M12
Connector: plug
Number of pins: 4
Kind of connector: male
Electrical mounting: screw terminal
Mechanical mounting: for cable
Polarisation: D code - Ethernet
Locking system: external thread
Current rating: 4A
IP rating: IP67
Body material: polyamide
Contact material: copper alloy
Wire cross-section: 1.5mm2
Cable external diameter: 4...8mm
Spatial orientation: angled 90°
Contact plating: gold-plated
Rated voltage: 250V
Operating temperature: -25...85°C
auf Bestellung 23 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 6+ | 12.4 EUR |
| 9+ | 8.17 EUR |
| 10+ | 7.72 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 381166334 LAPP
Category: M12 plugs and sockets, Description: Connector: M12; plug; PIN: 4; male; 250V; angled 90°; IP67; for cable, Type of connector: M12, Connector: plug, Number of pins: 4, Kind of connector: male, Electrical mounting: screw terminal, Mechanical mounting: for cable, Polarisation: D code - Ethernet, Locking system: external thread, Current rating: 4A, IP rating: IP67, Body material: polyamide, Contact material: copper alloy, Wire cross-section: 1.5mm2, Cable external diameter: 4...8mm, Spatial orientation: angled 90°, Contact plating: gold-plated, Rated voltage: 250V, Operating temperature: -25...85°C.
