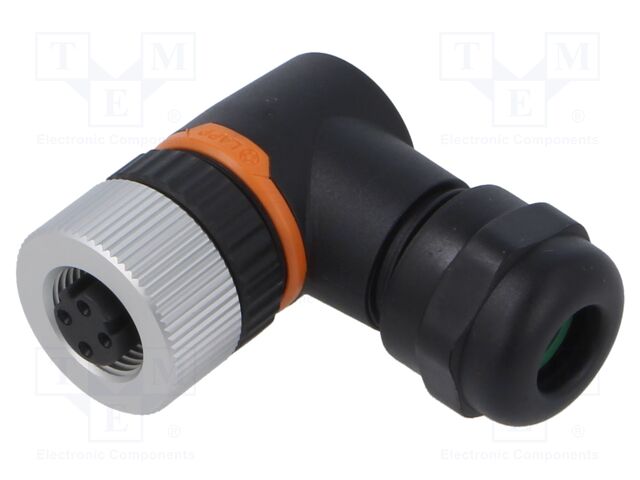

381166340 LAPP
Hersteller: LAPP
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; female; 250V; angled 90°; IP67; 4A
Connector: plug
Contact material: copper alloy
Electrical mounting: screw terminal
Locking system: internal thread
Kind of connector: female
Mechanical mounting: for cable
Contact plating: gold-plated
Type of connector: M12
IP rating: IP67
Body material: polyamide
Operating temperature: -25...85°C
Wire cross-section: 1.5mm2
Cable external diameter: 4...8mm
Current rating: 4A
Number of pins: 4
Rated voltage: 0.25kV
Polarisation: D code - Ethernet
Spatial orientation: angled 90°
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 4; female; 250V; angled 90°; IP67; 4A
Connector: plug
Contact material: copper alloy
Electrical mounting: screw terminal
Locking system: internal thread
Kind of connector: female
Mechanical mounting: for cable
Contact plating: gold-plated
Type of connector: M12
IP rating: IP67
Body material: polyamide
Operating temperature: -25...85°C
Wire cross-section: 1.5mm2
Cable external diameter: 4...8mm
Current rating: 4A
Number of pins: 4
Rated voltage: 0.25kV
Polarisation: D code - Ethernet
Spatial orientation: angled 90°
auf Bestellung 20 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 6+ | 12.43 EUR |
| 7+ | 11.31 EUR |
| 8+ | 10.17 EUR |
| 10+ | 9.04 EUR |
| 15+ | 8.04 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 381166340 LAPP
Category: M12 plugs and sockets, Description: Connector: M12; plug; PIN: 4; female; 250V; angled 90°; IP67; 4A, Connector: plug, Contact material: copper alloy, Electrical mounting: screw terminal, Locking system: internal thread, Kind of connector: female, Mechanical mounting: for cable, Contact plating: gold-plated, Type of connector: M12, IP rating: IP67, Body material: polyamide, Operating temperature: -25...85°C, Wire cross-section: 1.5mm2, Cable external diameter: 4...8mm, Current rating: 4A, Number of pins: 4, Rated voltage: 0.25kV, Polarisation: D code - Ethernet, Spatial orientation: angled 90°.
