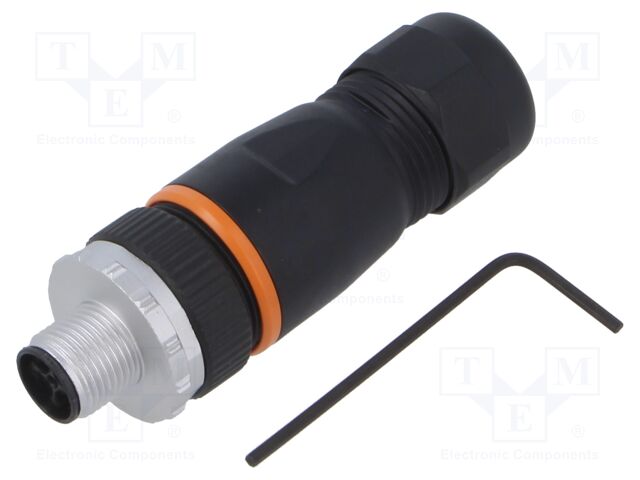

381166348 LAPP
Hersteller: LAPP
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 5; male; 1.5kV; straight; IP67; for cable
Type of connector: M12
Connector: plug
Number of pins: 5
Kind of connector: male
Rated voltage: 1.5kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: screw terminal
Mechanical mounting: for cable
Contact plating: gold-plated
Contact material: copper alloy
Body material: polyamide
Polarisation: E code
Locking system: external thread
Current rating: 16A
Wire cross-section: 0.5...2.5mm2
Cable external diameter: 8...12mm
Operating temperature: -25...85°C
Anzahl je Verpackung: 1 Stücke
Category: M12 plugs and sockets
Description: Connector: M12; plug; PIN: 5; male; 1.5kV; straight; IP67; for cable
Type of connector: M12
Connector: plug
Number of pins: 5
Kind of connector: male
Rated voltage: 1.5kV
Spatial orientation: straight
IP rating: IP67
Electrical mounting: screw terminal
Mechanical mounting: for cable
Contact plating: gold-plated
Contact material: copper alloy
Body material: polyamide
Polarisation: E code
Locking system: external thread
Current rating: 16A
Wire cross-section: 0.5...2.5mm2
Cable external diameter: 8...12mm
Operating temperature: -25...85°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 20 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 18.29 EUR |
| 5+ | 14.96 EUR |
| 10+ | 13.3 EUR |
| 15+ | 11.81 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 381166348 LAPP
Category: M12 plugs and sockets, Description: Connector: M12; plug; PIN: 5; male; 1.5kV; straight; IP67; for cable, Type of connector: M12, Connector: plug, Number of pins: 5, Kind of connector: male, Rated voltage: 1.5kV, Spatial orientation: straight, IP rating: IP67, Electrical mounting: screw terminal, Mechanical mounting: for cable, Contact plating: gold-plated, Contact material: copper alloy, Body material: polyamide, Polarisation: E code, Locking system: external thread, Current rating: 16A, Wire cross-section: 0.5...2.5mm2, Cable external diameter: 8...12mm, Operating temperature: -25...85°C, Anzahl je Verpackung: 1 Stücke.
