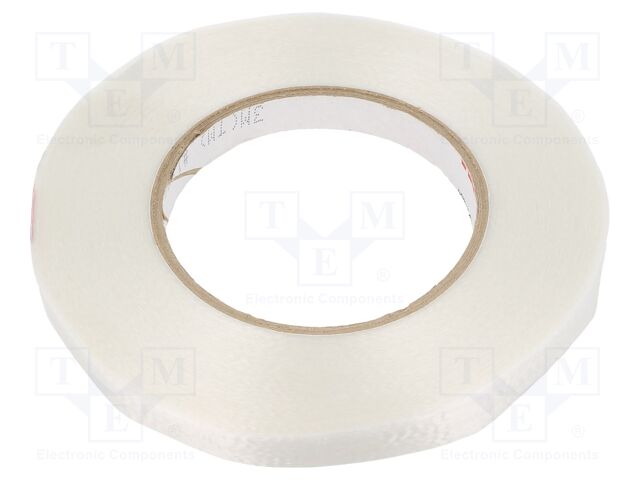

3M 1339 12MM 55M
Hersteller: 3MCategory: Insulating tapes
Description: Tape: electrical insulating; W: 12mm; L: 55m; Thk: 0.165mm; acrylic
Tape features: good insulating properties; high mechanical strength
Type of tape: electrical insulating
Kind of material: fiber glass reinforced
Thickness: 0.165mm
Length: 55m
Width: 12mm
Adhesion to steel: 3.81N/cm
Elongation at rupture: 5%
Max ambient temperature: 130°C
Dielectric strength: 5.5kV
Min. insulation resistance: 100GΩ
Kind of adhesive: acrylic
Tape material: polyester fabric
Tape application: coils; motor windings; transformers
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 17.88 EUR |
| 10+ | 12.27 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3M 1339 12MM 55M 3M
Category: Insulating tapes, Description: Tape: electrical insulating; W: 12mm; L: 55m; Thk: 0.165mm; acrylic, Tape features: good insulating properties; high mechanical strength, Type of tape: electrical insulating, Kind of material: fiber glass reinforced, Thickness: 0.165mm, Length: 55m, Width: 12mm, Adhesion to steel: 3.81N/cm, Elongation at rupture: 5%, Max ambient temperature: 130°C, Dielectric strength: 5.5kV, Min. insulation resistance: 100GΩ, Kind of adhesive: acrylic, Tape material: polyester fabric, Tape application: coils; motor windings; transformers, Anzahl je Verpackung: 1 Stücke.
