416890954

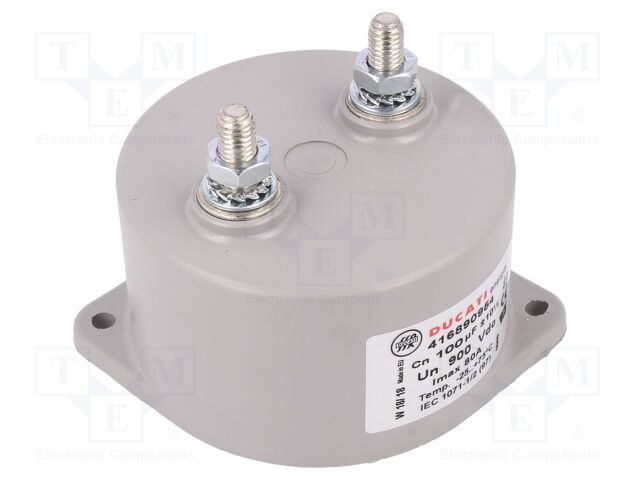

416890954 DUCATI ENERGIA

pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB7C4DFA730B8A0C7&compId=Power%20Electronic%20Capacitors.pdf?ci_sign=5ed05215b9924afa7879457b8065d4d48cd809e0 Hersteller: DUCATI ENERGIA
Category: THT Film Capacitors
Description: Capacitor: polypropylene; DC-Link; 100uF; 900VDC; Ioper.max: 70A
Kind of capacitor: DC-Link
Leads: M8 screws
Type of capacitor: polypropylene
Mounting: screw
Operating temperature: -25...85°C
Capacitance: 100µF
Dissipation: 0.0006
Terminal pitch: 45mm
Height: 51mm
Mounting holes pitch: 71.4x71.4mm
Diameter: 87mm
Body dimensions: Ø87x51mm
Tolerance: ±10%
Pulse resistance: 47V/μs
Max. operating current: 70A
Operating voltage: 900V DC
Max. forward impulse current: 4.7kA
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 416890954 DUCATI ENERGIA

Category: THT Film Capacitors, Description: Capacitor: polypropylene; DC-Link; 100uF; 900VDC; Ioper.max: 70A, Kind of capacitor: DC-Link, Leads: M8 screws, Type of capacitor: polypropylene, Mounting: screw, Operating temperature: -25...85°C, Capacitance: 100µF, Dissipation: 0.0006, Terminal pitch: 45mm, Height: 51mm, Mounting holes pitch: 71.4x71.4mm, Diameter: 87mm, Body dimensions: Ø87x51mm, Tolerance: ±10%, Pulse resistance: 47V/μs, Max. operating current: 70A, Operating voltage: 900V DC, Max. forward impulse current: 4.7kA.
