5-1415074-1

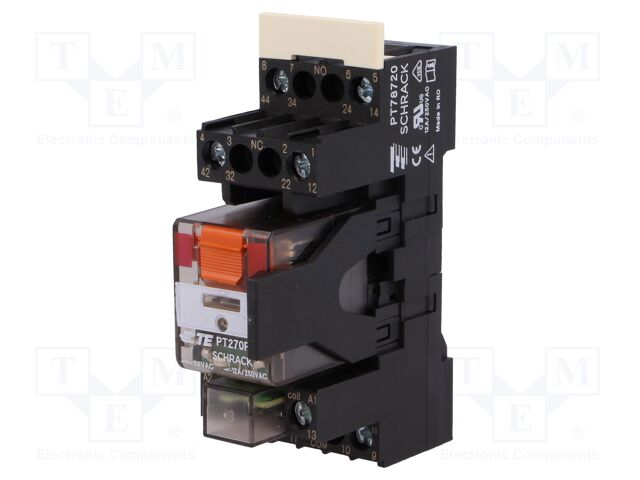

5-1415074-1 TE Connectivity

pVersion=0046&contRep=ZT&docId=005056AB752F1ED3B4866DAD9A2BE1EC&compId=PT_Package.pdf?ci_sign=5385b68b37a49258ddfa9aa60fd5695049ea3f1a Hersteller: TE Connectivity
Category: Electromagnetic Relays - Sets
Description: Relay: interface; DPDT; Ucoil: 24VAC; 12A; 12A/250VAC; 12A/30VDC
Operating temperature: -40...70°C
Leads: screw terminals
Body dimensions: 73.5x58x27mm
Kit contents: description plate PT17040; ejector PT17016; holder; indication module PTMV0524; PT270R24 relay
Coil resistance: 192Ω
Contacts configuration: DPDT
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 12A / 30V DC
Max. operating current: 12A
Type of relay: interface
Relay variant: Relay set
Rated coil voltage: 24V AC
Coil power consumption: 1VA
Switched voltage: max. 300V DC; max. 400V AC
Switching capacity: 3kVA
Mounting: for DIN rail mounting
Manufacturer series: PT
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
3+23.84 EUR
5+16.27 EUR
25+15.76 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 5-1415074-1 TE Connectivity

Category: Electromagnetic Relays - Sets, Description: Relay: interface; DPDT; Ucoil: 24VAC; 12A; 12A/250VAC; 12A/30VDC, Operating temperature: -40...70°C, Leads: screw terminals, Body dimensions: 73.5x58x27mm, Kit contents: description plate PT17040; ejector PT17016; holder; indication module PTMV0524; PT270R24 relay, Coil resistance: 192Ω, Contacts configuration: DPDT, AC contacts rating @R: 12A / 250V AC, DC contacts rating @R: 12A / 30V DC, Max. operating current: 12A, Type of relay: interface, Relay variant: Relay set, Rated coil voltage: 24V AC, Coil power consumption: 1VA, Switched voltage: max. 300V DC; max. 400V AC, Switching capacity: 3kVA, Mounting: for DIN rail mounting, Manufacturer series: PT, Anzahl je Verpackung: 1 Stücke.
