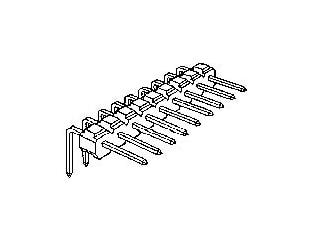

55101-T1103LF FCI

Description: CONN RECEPT, Packaging: Bulk, Connector Type: Header, Voltage Rating: 1500VAC, Current Rating (Amps): 3A, Mounting Type: Through Hole, Right Angle, Number of Positions: 3, Number of Rows: 1, Style: Board to Board, Operating Temperature: -65°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 100.0µin (2.54µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.090" (2.29mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled, Contact Length - Mating: 0.230" (5.84mm).
