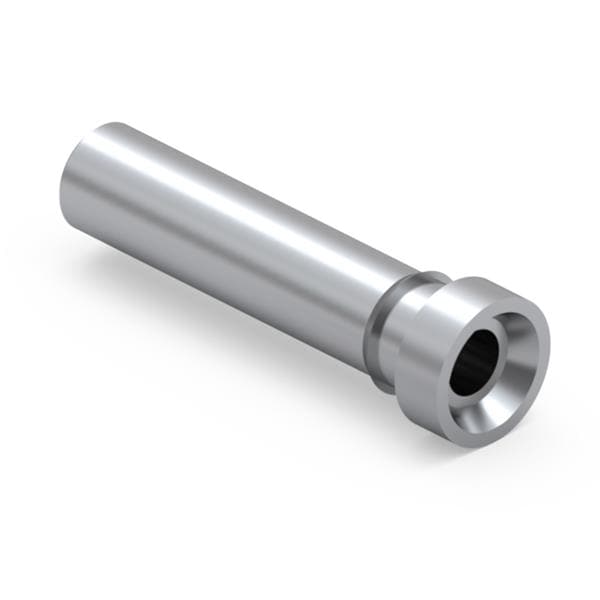

5650-0-19-01-16-01-10-0 Mill-Max Manufacturing Corp.
Hersteller: Mill-Max Manufacturing Corp.
Description: CONN RECEPT PIN .022-.034" .295"
Packaging: Bulk
Contact Finish: Tin-Lead
Flange Diameter: 0.085" (2.16mm)
Length - Overall: 0.295" (7.49mm)
Termination: Press-Fit
Mounting Hole Diameter: 0.067" (1.70mm)
Contact Finish Thickness: 200.0µin (5.08µm)
Contact Material: Beryllium Copper
Tail Type: No Tail
Accepts Pin Diameter: 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Pin Hole Diameter: 0.051" (1.30mm)
Socket Depth: 0.295" (7.49mm)
Accepts Square Pin Size: 0.025" (0.64mm)
Description: CONN RECEPT PIN .022-.034" .295"
Packaging: Bulk
Contact Finish: Tin-Lead
Flange Diameter: 0.085" (2.16mm)
Length - Overall: 0.295" (7.49mm)
Termination: Press-Fit
Mounting Hole Diameter: 0.067" (1.70mm)
Contact Finish Thickness: 200.0µin (5.08µm)
Contact Material: Beryllium Copper
Tail Type: No Tail
Accepts Pin Diameter: 0.022" ~ 0.034" (0.56mm ~ 0.86mm)
Pin Hole Diameter: 0.051" (1.30mm)
Socket Depth: 0.295" (7.49mm)
Accepts Square Pin Size: 0.025" (0.64mm)
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 5650-0-19-01-16-01-10-0 Mill-Max Manufacturing Corp.
Description: CONN RECEPT PIN .022-.034" .295", Packaging: Bulk, Contact Finish: Tin-Lead, Flange Diameter: 0.085" (2.16mm), Length - Overall: 0.295" (7.49mm), Termination: Press-Fit, Mounting Hole Diameter: 0.067" (1.70mm), Contact Finish Thickness: 200.0µin (5.08µm), Contact Material: Beryllium Copper, Tail Type: No Tail, Accepts Pin Diameter: 0.022" ~ 0.034" (0.56mm ~ 0.86mm), Pin Hole Diameter: 0.051" (1.30mm), Socket Depth: 0.295" (7.49mm), Accepts Square Pin Size: 0.025" (0.64mm).
Weitere Produktangebote 5650-0-19-01-16-01-10-0
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
5650-0-19-01-16-01-10-0 | Hersteller : Mill-Max | Circuit Board Hardware - PCB .035 PC RECPT .295L |
Produkt ist nicht verfügbar |
