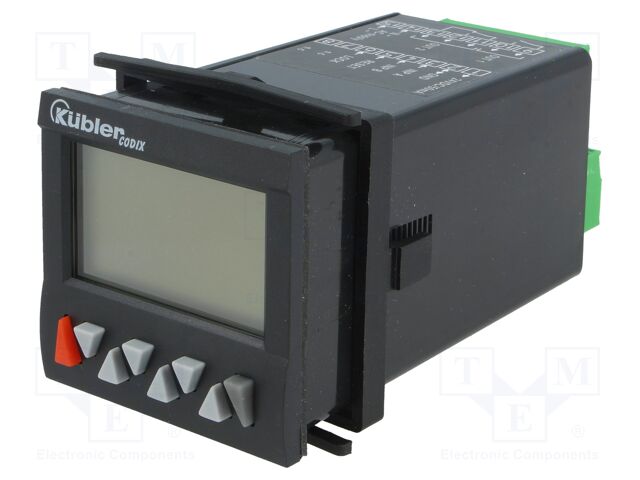

6.908.0101.0A0 KÜBLER


Category: Impulse Counters
Description: Counter: electronical; LCD; time/pulses; -999999÷999999; SPST-NO
Mounting: on panel
Counting range: -999999...999999
Resetting method: electrical; manual
Type of counter: electronical
Electrical input 2 parameters: high level: 3,5...30V; low level: 0...2V
Electrical input 1 parameters: high level: 3,5...30V; low level: 0...2V
Kind of display used: LCD
The additional control inputs: LOCK; RESET
Kind of input 2: NPN; PNP
Kind of input 1: NPN; PNP
Kind of counter: progressive/reversing
Electrical connection: screw terminals
Kind of output 2: SPDT
Kind of output 1: SPST-NO
Type of counted signal: time/pulses
Operating temperature: -10...50°C
Display 2 height: 7mm
Mounting hole diameter: 45x45mm
Display height 1: 9mm
Body dimensions: 48x48x98mm
Supply voltage: 230V AC
Output 1 electrical parameters: 30V DC / 3A; 250V AC / 3A
Output 2 electrical parameters: 30V DC / 3A; 250V AC / 3A
Max IN1 counting frequency: 5kHz
IN2 max counting frequency: 5kHz
auf Bestellung 7 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis |
---|---|
1+ | 159.04 EUR |
5+ | 152.92 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 6.908.0101.0A0 KÜBLER
Category: Impulse Counters, Description: Counter: electronical; LCD; time/pulses; -999999÷999999; SPST-NO, Mounting: on panel, Counting range: -999999...999999, Resetting method: electrical; manual, Type of counter: electronical, Electrical input 2 parameters: high level: 3,5...30V; low level: 0...2V, Electrical input 1 parameters: high level: 3,5...30V; low level: 0...2V, Kind of display used: LCD, The additional control inputs: LOCK; RESET, Kind of input 2: NPN; PNP, Kind of input 1: NPN; PNP, Kind of counter: progressive/reversing, Electrical connection: screw terminals, Kind of output 2: SPDT, Kind of output 1: SPST-NO, Type of counted signal: time/pulses, Operating temperature: -10...50°C, Display 2 height: 7mm, Mounting hole diameter: 45x45mm, Display height 1: 9mm, Body dimensions: 48x48x98mm, Supply voltage: 230V AC, Output 1 electrical parameters: 30V DC / 3A; 250V AC / 3A, Output 2 electrical parameters: 30V DC / 3A; 250V AC / 3A, Max IN1 counting frequency: 5kHz, IN2 max counting frequency: 5kHz.
