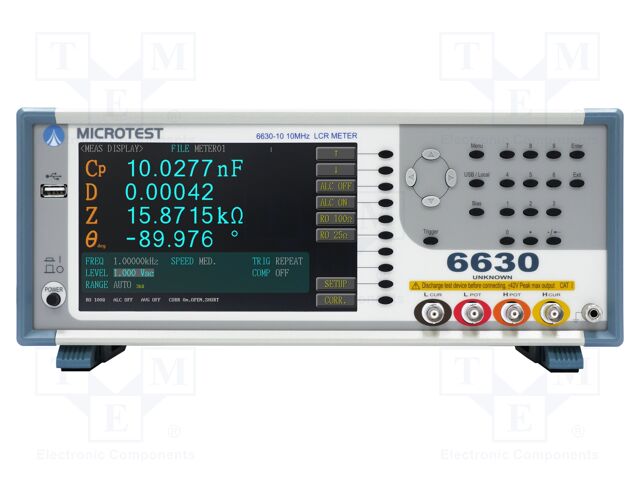

6630-10 MICROTEST

Category: LCR Meter, Description: LCR meter; Meas.accur: ±0.05%; LCD TFT 7"; 6 digits; 800x480, Kind of display used: LCD TFT 7", Display resolution: 800x480, Interface: GPIB; HANDLER I/O; LAN; RS232; USB device; USB Host, Measuring instrument features: 50 sets setting memory; ALC function- Automatic Level Control; auto component classification; BIN comparator function; cable compensation 0/ 0,5/ 1/ 2 m; displays up to 4 component parameters; open circuit/short circuit/load correction function; parallel or serial measurement; Test Signal Current Level 200μA-20mArms (resolution: 10μA); Test Signal Voltage Level 10mV-2Vrms (resolution: 1mV), Supply voltage: 100...240V, Measurement time: < 0.003s, Dimensions: 336x147x340mm, Measurement accuracy: ±0.05%, Operating temperature: 10...40°C, Measurement frequency: 10Hz...10MHz, Supply voltage frequency: 50/60Hz, Output impedance: 25Ω; 100Ω, Display parameters: 6 digits, Measurement: admittance; capacitance; conductance; DCR; dissipation factor D; equivalent series resistance (ESR); impedance; inductance; phase angle θ; quality factor Q; reactance; relative permeability; relative permittivity; resistance; susceptance, Type of meter: LCR meter, Standard equipment: mains cable; measuring probe FX-000C19, Anzahl je Verpackung: 1 Stücke.
