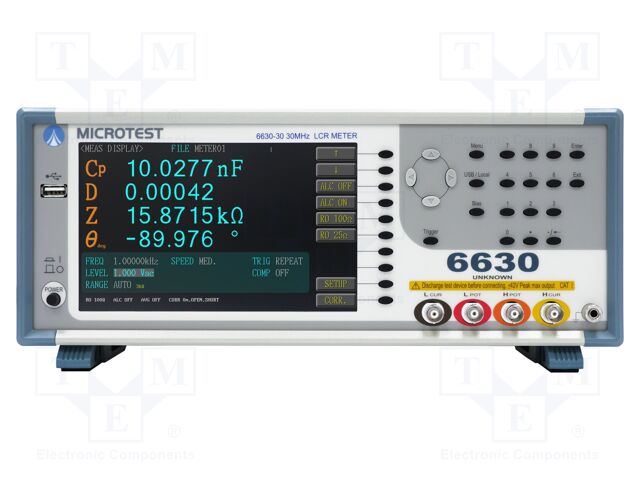

6630-30 MICROTEST

Category: LCR Meter, Description: LCR meter; Meas.accur: ±0.05%; LCD TFT 7"; 6 digits; 800x480, Kind of display used: LCD TFT 7", Measurement: admittance; capacitance; conductance; DCR; dissipation factor D; equivalent series resistance (ESR); impedance; inductance; phase angle θ; quality factor Q; reactance; relative permeability; relative permittivity; resistance; susceptance, Dimensions: 336x147x340mm, Measuring instrument features: 50 sets setting memory; ALC function- Automatic Level Control; auto component classification; BIN comparator function; cable compensation 0/ 0,5/ 1/ 2 m; displays up to 4 component parameters; open circuit/short circuit/load correction function; parallel or serial measurement; Test Signal Current Level 200μA-20mArms (resolution: 10μA); Test Signal Voltage Level 10mV-2Vrms (resolution: 1mV); ultra-high measuring speed < 3ms, Measurement frequency: 10Hz...30MHz, Operating temperature: 10...40°C, Output impedance: 25Ω; 100Ω, Supply voltage frequency: 50/60Hz, Supply voltage: 100...240V, Display resolution: 800x480, Display parameters: 6 digits, Standard equipment: mains cable; measuring probe FX-000C19, Interface: GPIB; HANDLER I/O; LAN; RS232; USB device; USB Host, Type of meter: LCR meter, Measurement time: < 0.003s, Measurement accuracy: ±0.05%, Anzahl je Verpackung: 1 Stücke.
