Produkte > LAPP > 70250212
70250212

70250212 LAPP


pVersion=0046&contRep=ZT&docId=005056AB752F1ED688B3F875E4C871BF&compId=70250212.pdf?ci_sign=5f8d154030e4ce0c68c262a5fecd3a5fdc03bb14 Hersteller: LAPP
Category: LAPP connectors

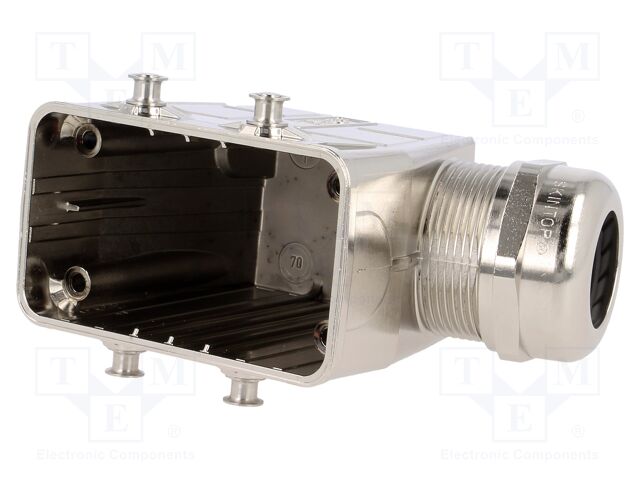

Description: Enclosure for connectors: HDC; size H-B 10; for cable; angled
Case: size H-B 10
Enclosure material: zinc alloy
IP rating: IP68
Connector variant: enhanced construction; fully shielded
Conform to the norm: DIN EN 6988; DIN EN ISO 9227; IEC 68-2-52
Locking system: for double latch
Plating material: nickel
Mechanical mounting: for cable
Cable external diameter: 11...21mm
Spatial orientation: angled
Insert mounting: 57x27mm
Application - series/manufacturer: EPIC® ULTRA H-B
Type enclosure for connectors: HDC
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 70250212 LAPP

Category: LAPP connectors, Description: Enclosure for connectors: HDC; size H-B 10; for cable; angled, Case: size H-B 10, Enclosure material: zinc alloy, IP rating: IP68, Connector variant: enhanced construction; fully shielded, Conform to the norm: DIN EN 6988; DIN EN ISO 9227; IEC 68-2-52, Locking system: for double latch, Plating material: nickel, Mechanical mounting: for cable, Cable external diameter: 11...21mm, Spatial orientation: angled, Insert mounting: 57x27mm, Application - series/manufacturer: EPIC® ULTRA H-B, Type enclosure for connectors: HDC, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 70250212

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
70250212 70250212 Hersteller : LAPP cc05a9724e85c496946bc07d164db1b991873d3e.pdf Description: ACCESSORIES
Packaging: Bulk
Part Status: Active
Connector Type: Hood
Size / Dimension: 2.835" L x 1.654" W x 2.402" H (72.00mm x 42.00mm x 61.00mm)
Style: Side Entry
Operating Temperature: -40°C ~ 100°C
Size: HB10
Ingress Protection: IP68 - Dust Tight, Waterproof
Lock Location: Locking Clip (2) on Base Bottom
Housing Material: Zinc Die Cast
Housing Color: Silver
Housing Finish: Nickel
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
70250212 70250212 Hersteller : LAPP pVersion=0046&contRep=ZT&docId=005056AB752F1ED688B3F875E4C871BF&compId=70250212.pdf?ci_sign=5f8d154030e4ce0c68c262a5fecd3a5fdc03bb14 Category: LAPP connectors
Description: Enclosure for connectors: HDC; size H-B 10; for cable; angled
Case: size H-B 10
Enclosure material: zinc alloy
IP rating: IP68
Connector variant: enhanced construction; fully shielded
Conform to the norm: DIN EN 6988; DIN EN ISO 9227; IEC 68-2-52
Locking system: for double latch
Plating material: nickel
Mechanical mounting: for cable
Cable external diameter: 11...21mm
Spatial orientation: angled
Insert mounting: 57x27mm
Application - series/manufacturer: EPIC® ULTRA H-B
Type enclosure for connectors: HDC
