Produkte > HELUKABEL > 803722
803722

803722 HELUKABEL


pVersion=0046&contRep=ZT&docId=005056AB752F1ED5BDE152159FE1B1BF&compId=803722.pdf?ci_sign=7bf899a6ee33cc8382f2e7633a83b86d8fed0d46 Hersteller: HELUKABEL
Category: Serial Bus Cables

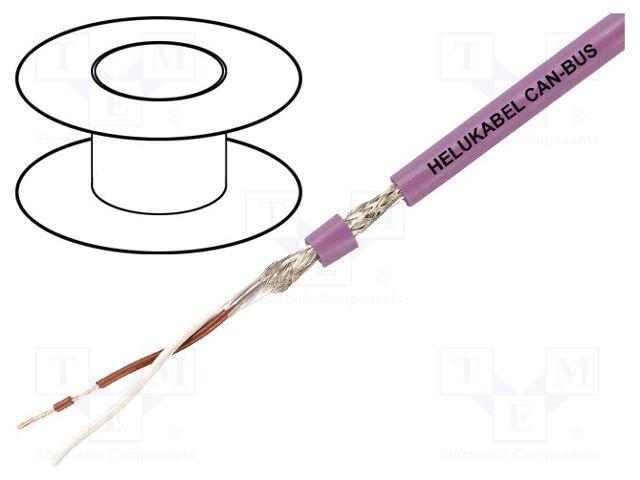

Description: Wire; 2x2x0.5mm2; CAN bus; stranded; Cu; Insulation: PVC; violet
Operating temperature: -40...70°C
Wire insulation material: PVC
Shield structure: shielded; tinned copper braid
Core structure: stranded
Cable features: twisted pair conductors
Core section: 0.5mm2
Cable external diameter: 9.6mm
No. of pairs: 2
Cable structure: 2x2x0.5mm2
Number of cores: 4
Core diameter: 20AWG
Rated voltage: 250V
Insulation colour: violet
Cable application: CAN bus
Core marking: colours without colour repetition
Kind of core: Cu
Type of wire: data transmission
Kind of material: no flame propagation
Resistance to: most of chemical compounds; most of dissolvents; to weather conditions
CPR standard: no classification
Earth core: none
Anzahl je Verpackung: 1 Stücke
auf Bestellung 502 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
24+3.09 EUR
37+1.94 EUR
40+1.83 EUR
Mindestbestellmenge: 24
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 803722 HELUKABEL

Category: Serial Bus Cables, Description: Wire; 2x2x0.5mm2; CAN bus; stranded; Cu; Insulation: PVC; violet, Operating temperature: -40...70°C, Wire insulation material: PVC, Shield structure: shielded; tinned copper braid, Core structure: stranded, Cable features: twisted pair conductors, Core section: 0.5mm2, Cable external diameter: 9.6mm, No. of pairs: 2, Cable structure: 2x2x0.5mm2, Number of cores: 4, Core diameter: 20AWG, Rated voltage: 250V, Insulation colour: violet, Cable application: CAN bus, Core marking: colours without colour repetition, Kind of core: Cu, Type of wire: data transmission, Kind of material: no flame propagation, Resistance to: most of chemical compounds; most of dissolvents; to weather conditions, CPR standard: no classification, Earth core: none, Anzahl je Verpackung: 1 Stücke.
