Produkte > 3M > 8125/15 (100FT)
8125/15 (100FT)

8125/15 (100FT) 3M

pVersion=0046&contRep=ZT&docId=005056AB90B41EDA929B392BB0EEC0C4&compId=8125.pdf?ci_sign=69785e3d01054a9f04724be651f8e7e890a073c2 pVersion=0046&contRep=ZT&docId=005056AB90B41EDBAFA6F8226270C0C7&compId=3M%20Cable%20and%20Accessories.pdf?ci_sign=8a255b5cdcc8d685161a6dc818725132c25b9b6d pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8AEFA6BEE8E100D5&compId=3M_Cable_SelectionGuide_Letter_HR.pdf?ci_sign=feeca919a34f12a32b0c1c73da2db29544817ea0 Hersteller: 3M

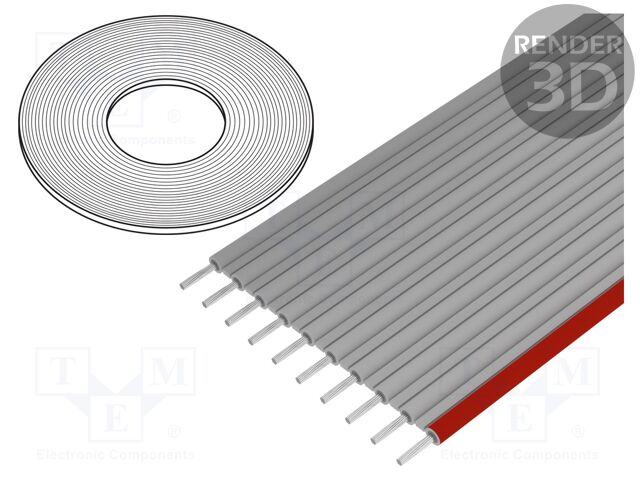

Category: Ribbon Cables - Single Color
Description: Wire: ribbon; 2.54mm; stranded; Cu; unshielded; PVC; dark grey
Operating temperature: -20...150°C
Conform to the norm: CSA AWM I A/B FT1; UL 20462; VW-1
Tape pitch: 2.54mm
Type of wire: ribbon
Wire insulation material: PVC
Insulation colour: dark grey
Kind of core: Cu; tinned
Shield structure: unshielded
Number of cores: 15
B dimension: 35.56mm
Core diameter: 24AWG
Core structure: stranded
Package contents: 30.5m
Cable structure: 15x24AWG
Rated voltage: 50V
A dimension: 37.29mm
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+338.82 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 8125/15 (100FT) 3M

Category: Ribbon Cables - Single Color, Description: Wire: ribbon; 2.54mm; stranded; Cu; unshielded; PVC; dark grey, Operating temperature: -20...150°C, Conform to the norm: CSA AWM I A/B FT1; UL 20462; VW-1, Tape pitch: 2.54mm, Type of wire: ribbon, Wire insulation material: PVC, Insulation colour: dark grey, Kind of core: Cu; tinned, Shield structure: unshielded, Number of cores: 15, B dimension: 35.56mm, Core diameter: 24AWG, Core structure: stranded, Package contents: 30.5m, Cable structure: 15x24AWG, Rated voltage: 50V, A dimension: 37.29mm, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote 8125/15 (100FT) nach Preis ab 326.53 EUR bis 338.82 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
8125/15 (100FT) 8125/15 (100FT) Hersteller : 3M pVersion=0046&contRep=ZT&docId=005056AB90B41EDA929B392BB0EEC0C4&compId=8125.pdf?ci_sign=69785e3d01054a9f04724be651f8e7e890a073c2 pVersion=0046&contRep=ZT&docId=005056AB90B41EDBAFA6F8226270C0C7&compId=3M%20Cable%20and%20Accessories.pdf?ci_sign=8a255b5cdcc8d685161a6dc818725132c25b9b6d pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8AEFA6BEE8E100D5&compId=3M_Cable_SelectionGuide_Letter_HR.pdf?ci_sign=feeca919a34f12a32b0c1c73da2db29544817ea0 Category: Ribbon Cables - Single Color
Description: Wire: ribbon; 2.54mm; stranded; Cu; unshielded; PVC; dark grey
Operating temperature: -20...150°C
Conform to the norm: CSA AWM I A/B FT1; UL 20462; VW-1
Tape pitch: 2.54mm
Type of wire: ribbon
Wire insulation material: PVC
Insulation colour: dark grey
Kind of core: Cu; tinned
Shield structure: unshielded
Number of cores: 15
B dimension: 35.56mm
Core diameter: 24AWG
Core structure: stranded
Package contents: 30.5m
Cable structure: 15x24AWG
Rated voltage: 50V
A dimension: 37.29mm
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+338.82 EUR
10+326.53 EUR
Im Einkaufswagen  Stück im Wert von  UAH
8125/15 100FT Hersteller : 3M Interconnect Solutions emsd_ts-0259-d.pdf ROUND CONDUCTOR FLAT CABLE .100 24 AWG STRANDED, PVC
