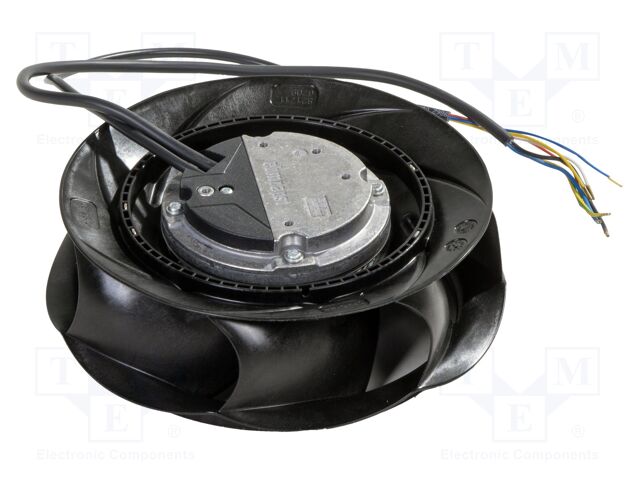

8300100623 EBM-PAPST
Hersteller: EBM-PAPST
Category: EC Fans
Description: Fan: EC; radial; 230VAC; Ø190x66.5mm; 520m3/h; ball; 3400rpm; IP54
Supply voltage: 230V AC
IP rating: IP54
Operating temperature: -25...60°C
Kind of fan: radial
Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 1,1 mA; soft start; speed control; tach output; thermal overload protection for electronics / motor
Fan motor: E06001-10
Type of fan: EC
Protection class: I
Leads: leads x7
Impeller material: plastic
Fan dimensions: Ø190x66.5mm
Lead length: 0.45m
Power consumption: 85W
Current rating: 0.7A
Frequency: 50...60Hz
Operating voltage: 200...240V AC
Fan efficiency: 520m3/h
Rotational rate/speed: 3400rpm
Kind of motor: 1-phase
Enclosure material: aluminium
Insulation class: B
Kind of Bearing: ball
Anzahl je Verpackung: 1 Stücke
Category: EC Fans
Description: Fan: EC; radial; 230VAC; Ø190x66.5mm; 520m3/h; ball; 3400rpm; IP54
Supply voltage: 230V AC
IP rating: IP54
Operating temperature: -25...60°C
Kind of fan: radial
Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 1,1 mA; soft start; speed control; tach output; thermal overload protection for electronics / motor
Fan motor: E06001-10
Type of fan: EC
Protection class: I
Leads: leads x7
Impeller material: plastic
Fan dimensions: Ø190x66.5mm
Lead length: 0.45m
Power consumption: 85W
Current rating: 0.7A
Frequency: 50...60Hz
Operating voltage: 200...240V AC
Fan efficiency: 520m3/h
Rotational rate/speed: 3400rpm
Kind of motor: 1-phase
Enclosure material: aluminium
Insulation class: B
Kind of Bearing: ball
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 266.61 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 8300100623 EBM-PAPST
Category: EC Fans, Description: Fan: EC; radial; 230VAC; Ø190x66.5mm; 520m3/h; ball; 3400rpm; IP54, Supply voltage: 230V AC, IP rating: IP54, Operating temperature: -25...60°C, Kind of fan: radial, Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 1,1 mA; soft start; speed control; tach output; thermal overload protection for electronics / motor, Fan motor: E06001-10, Type of fan: EC, Protection class: I, Leads: leads x7, Impeller material: plastic, Fan dimensions: Ø190x66.5mm, Lead length: 0.45m, Power consumption: 85W, Current rating: 0.7A, Frequency: 50...60Hz, Operating voltage: 200...240V AC, Fan efficiency: 520m3/h, Rotational rate/speed: 3400rpm, Kind of motor: 1-phase, Enclosure material: aluminium, Insulation class: B, Kind of Bearing: ball, Anzahl je Verpackung: 1 Stücke.
