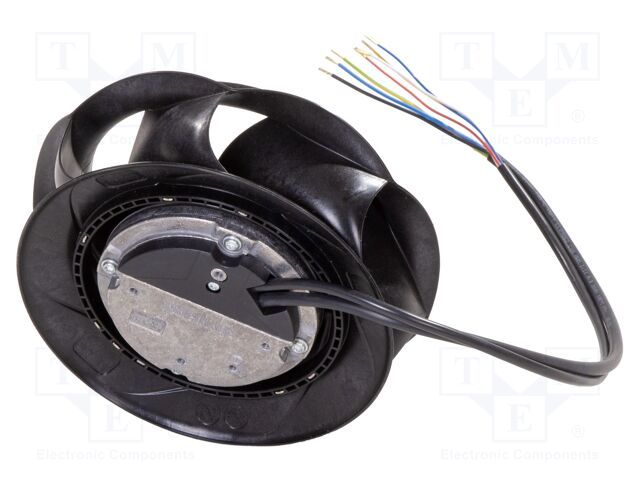

8300100938 EBM-PAPST
Hersteller: EBM-PAPST
Category: EC Fans
Description: Fan: EC; radial; 230VAC; Ø175x67.2mm; 450m3/h; ball; 4000rpm; IP54
Type of fan: EC
Kind of fan: radial
Fan dimensions: Ø175x67.2mm
Kind of Bearing: ball
Impeller material: plastic
Enclosure material: aluminium
Current rating: 0.7A
IP rating: IP54
Supply voltage: 230V AC
Leads: leads x7
Operating voltage: 200...240V AC
Frequency: 50...60Hz
Fan motor: E06001-10
Insulation class: B
Fan efficiency: 450m3/h
Rotational rate/speed: 4000rpm
Power consumption: 85W
Protection class: I
Lead length: 0.45m
Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 1,1 mA; soft start; speed control; tach output; thermal overload protection for electronics / motor
Kind of motor: 1-phase
Operating temperature: -25...60°C
Anzahl je Verpackung: 1 Stücke
Category: EC Fans
Description: Fan: EC; radial; 230VAC; Ø175x67.2mm; 450m3/h; ball; 4000rpm; IP54
Type of fan: EC
Kind of fan: radial
Fan dimensions: Ø175x67.2mm
Kind of Bearing: ball
Impeller material: plastic
Enclosure material: aluminium
Current rating: 0.7A
IP rating: IP54
Supply voltage: 230V AC
Leads: leads x7
Operating voltage: 200...240V AC
Frequency: 50...60Hz
Fan motor: E06001-10
Insulation class: B
Fan efficiency: 450m3/h
Rotational rate/speed: 4000rpm
Power consumption: 85W
Protection class: I
Lead length: 0.45m
Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 1,1 mA; soft start; speed control; tach output; thermal overload protection for electronics / motor
Kind of motor: 1-phase
Operating temperature: -25...60°C
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 278.85 EUR |
