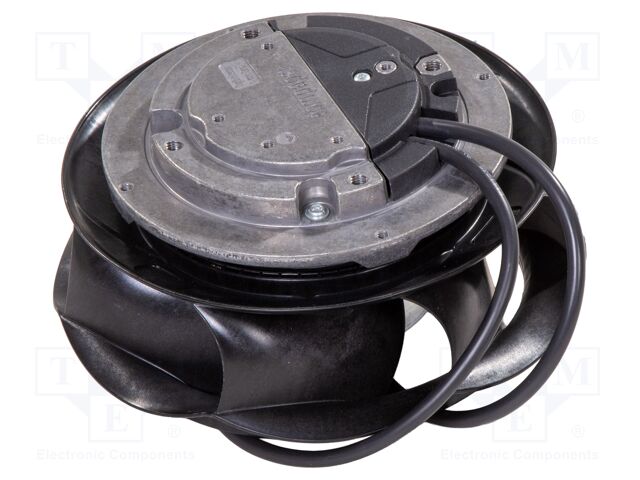

8300100960 EBM-PAPST
Hersteller: EBM-PAPST
Category: EC Fans
Description: Fan: EC; radial; 230VAC; Ø175x88.7mm; 540m3/h; ball; 5150rpm; IP54
Type of fan: EC
Kind of fan: radial
Supply voltage: 230V AC
Operating voltage: 200...240V AC
Fan dimensions: Ø175x88.7mm
Power consumption: 170W
Current rating: 1.4A
Fan efficiency: 540m3/h
Kind of Bearing: ball
Rotational rate/speed: 5150rpm
Frequency: 50...60Hz
Impeller material: plastic
Enclosure material: aluminium
Insulation class: B
IP rating: IP54
Operating temperature: -25...60°C
Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 10 mA; soft start; speed control; tach output; thermal overload protection for electronics / motor
Fan motor: E06003-23
Kind of motor: 1-phase
Protection class: I
Lead length: 0.45m
Leads: leads x9
Category: EC Fans
Description: Fan: EC; radial; 230VAC; Ø175x88.7mm; 540m3/h; ball; 5150rpm; IP54
Type of fan: EC
Kind of fan: radial
Supply voltage: 230V AC
Operating voltage: 200...240V AC
Fan dimensions: Ø175x88.7mm
Power consumption: 170W
Current rating: 1.4A
Fan efficiency: 540m3/h
Kind of Bearing: ball
Rotational rate/speed: 5150rpm
Frequency: 50...60Hz
Impeller material: plastic
Enclosure material: aluminium
Insulation class: B
IP rating: IP54
Operating temperature: -25...60°C
Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 10 mA; soft start; speed control; tach output; thermal overload protection for electronics / motor
Fan motor: E06003-23
Kind of motor: 1-phase
Protection class: I
Lead length: 0.45m
Leads: leads x9
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 311.24 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 8300100960 EBM-PAPST
Category: EC Fans, Description: Fan: EC; radial; 230VAC; Ø175x88.7mm; 540m3/h; ball; 5150rpm; IP54, Type of fan: EC, Kind of fan: radial, Supply voltage: 230V AC, Operating voltage: 200...240V AC, Fan dimensions: Ø175x88.7mm, Power consumption: 170W, Current rating: 1.4A, Fan efficiency: 540m3/h, Kind of Bearing: ball, Rotational rate/speed: 5150rpm, Frequency: 50...60Hz, Impeller material: plastic, Enclosure material: aluminium, Insulation class: B, IP rating: IP54, Operating temperature: -25...60°C, Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 10 mA; soft start; speed control; tach output; thermal overload protection for electronics / motor, Fan motor: E06003-23, Kind of motor: 1-phase, Protection class: I, Lead length: 0.45m, Leads: leads x9.
