8300101064 EBM-PAPST
Hersteller: EBM-PAPST
Category: EC Fans

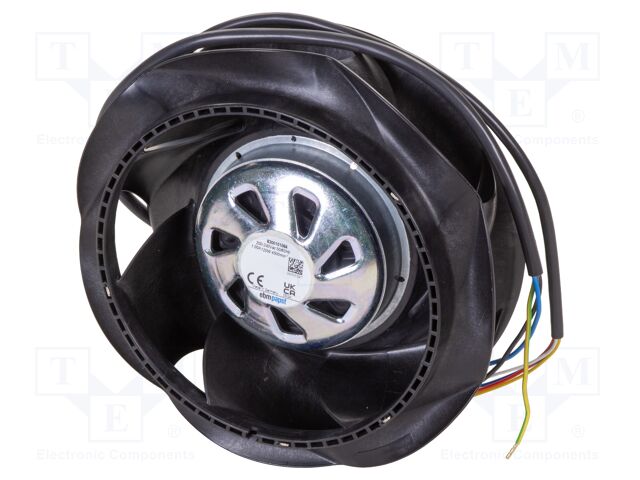

Description: Fan: EC; radial; 230VAC; Ø175x92.5mm; 485m3/h; ball; 4500rpm; IP54
Supply voltage: 230V AC
IP rating: IP54
Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 10 mA; soft start; speed control; tach output; thermal overload protection for electronics / motor
Operating temperature: -25...60°C
Impeller material: plastic
Insulation class: B
Kind of Bearing: ball
Fan efficiency: 485m3/h
Rotational rate/speed: 4500rpm
Power consumption: 0.12kW
Protection class: I
Lead length: 0.45m
Kind of motor: 1-phase
Kind of fan: radial
Enclosure material: aluminium
Current rating: 1A
Leads: leads x7
Operating voltage: 200...240V AC
Frequency: 50...60Hz
Type of fan: EC
Fan dimensions: Ø175x92.5mm
Fan motor: E06002-17
Anzahl je Verpackung: 1 Stücke
Category: EC Fans
Description: Fan: EC; radial; 230VAC; Ø175x92.5mm; 485m3/h; ball; 4500rpm; IP54
Supply voltage: 230V AC
IP rating: IP54
Additional functions: control input 0-10V DC / PWM; line undervoltage detection; motor current limitation; output 10V DC, max. 10 mA; soft start; speed control; tach output; thermal overload protection for electronics / motor
Operating temperature: -25...60°C
Impeller material: plastic
Insulation class: B
Kind of Bearing: ball
Fan efficiency: 485m3/h
Rotational rate/speed: 4500rpm
Power consumption: 0.12kW
Protection class: I
Lead length: 0.45m
Kind of motor: 1-phase
Kind of fan: radial
Enclosure material: aluminium
Current rating: 1A
Leads: leads x7
Operating voltage: 200...240V AC
Frequency: 50...60Hz
Type of fan: EC
Fan dimensions: Ø175x92.5mm
Fan motor: E06002-17
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 302.32 EUR |
