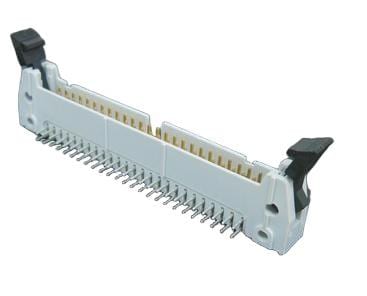

86130642113345E1LF Amphenol ICC (FCI)

Description: CONN HEADER R/A 64POS 2.54MM, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Latch Lock/Eject Hooks, Long, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 64, Mounting Type: Through Hole, Right Angle, Voltage Rating: 250V, Connector Type: Header, Features: Keying Slot, Packaging: Tray, Contact Length - Mating: 0.240" (6.10mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.344" (8.75mm), Contact Length - Post: 0.165" (4.19mm), Contact Shape: Circular, Part Status: Active, Contact Finish - Post: Tin, Contact Finish - Mating: Gold or Gold-Palladium, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Gray, Contact Material: Copper Alloy, Material Flammability Rating: UL94 V-0.
