Produkte > HIRSCHMANN > 934888017 GDM21F6-L14-10D
934888017  GDM21F6-L14-10D

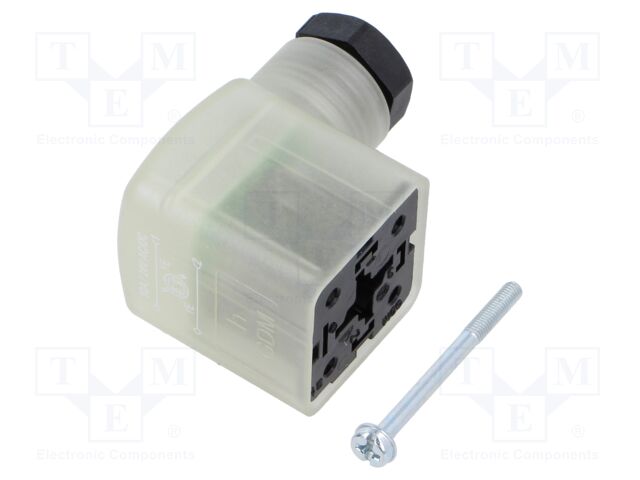

934888017 GDM21F6-L14-10D HIRSCHMANN


pVersion=0046&contRep=ZT&docId=005056AB752F1EE5A0D9A385423F611C&compId=934888005_076.pdf?ci_sign=ca51473841599e2f1a0ac8deda23d61472d85625 Hersteller: HIRSCHMANN
Category: Valve connectors
Description: Connector: valve connector; plug; form A; 18mm; female; PIN: 3; 10A
Current rating: 10A
IP rating: IP65
Number of pins: 3
Connector pinout layout: 2+PE
Connector variant: square; with LED
Contacts pitch: 18mm
Conform to the norm: DIN 43650; DIN EN 175301-803; ISO 4400
Wire cross-section: 1.5mm2
Locking system: screws
Gland thread: M16
Lamp colour: yellow
Electrical mounting: screw terminal
Mechanical mounting: for cable
Cable external diameter: 4.5...9mm
Spatial orientation: angled 90°
Colour: translucent
Type of connector: valve connector
Connector: plug
Kind of connector: female
Rated voltage: 24V
Operating temperature: -25...80°C
Case: form A
Anzahl je Verpackung: 1 Stücke
auf Bestellung 70 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
8+9.54 EUR
11+6.56 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 934888017 GDM21F6-L14-10D HIRSCHMANN

Category: Valve connectors, Description: Connector: valve connector; plug; form A; 18mm; female; PIN: 3; 10A, Current rating: 10A, IP rating: IP65, Number of pins: 3, Connector pinout layout: 2+PE, Connector variant: square; with LED, Contacts pitch: 18mm, Conform to the norm: DIN 43650; DIN EN 175301-803; ISO 4400, Wire cross-section: 1.5mm2, Locking system: screws, Gland thread: M16, Lamp colour: yellow, Electrical mounting: screw terminal, Mechanical mounting: for cable, Cable external diameter: 4.5...9mm, Spatial orientation: angled 90°, Colour: translucent, Type of connector: valve connector, Connector: plug, Kind of connector: female, Rated voltage: 24V, Operating temperature: -25...80°C, Case: form A, Anzahl je Verpackung: 1 Stücke.
