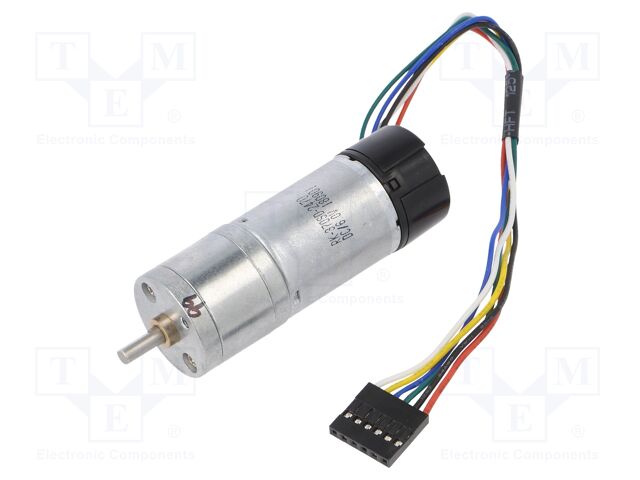

99:1 METAL GEARMOTOR 25DX69L MM HP 6V WI POLOLU
Hersteller: POLOLU
Category: DC Motors
Description: Motor: DC; with encoder,with gearbox; HP; 6VDC; 6.5A; 97rpm
Type of motor: DC
Kind of motor: with encoder; with gearbox
Manufacturer series: High Power
Supply voltage: 6V DC
Max. operating current: 6.5A
Shaft surface: D spring
Nominal rot. speed measured after gear: 97rpm
Torque: max. 1482.92mNm
Gear: 98.78:1
Shaft diameter: 4mm
Operating current: 0.55A
Resolution: 48imp/revol.
Kind of sensor: encoder
Body dimensions: Ø25x69mm
Information: product is not a working device, but only component
Double sided shaft: no
| Anzahl | Preis |
|---|---|
| 2+ | 67.08 EUR |
| 3+ | 59.17 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 99:1 METAL GEARMOTOR 25DX69L MM HP 6V WI POLOLU
Category: DC Motors, Description: Motor: DC; with encoder,with gearbox; HP; 6VDC; 6.5A; 97rpm, Type of motor: DC, Kind of motor: with encoder; with gearbox, Manufacturer series: High Power, Supply voltage: 6V DC, Max. operating current: 6.5A, Shaft surface: D spring, Nominal rot. speed measured after gear: 97rpm, Torque: max. 1482.92mNm, Gear: 98.78:1, Shaft diameter: 4mm, Operating current: 0.55A, Resolution: 48imp/revol., Kind of sensor: encoder, Body dimensions: Ø25x69mm, Information: product is not a working device, but only component, Double sided shaft: no.
