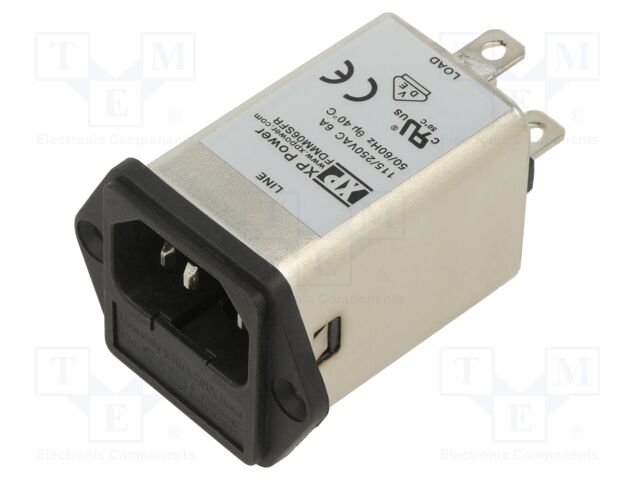

FDMM06SFR XP POWER
Hersteller: XP POWERCategory: IEC 60320 connectors
Description: Connector: AC supply; socket; male; Inom: 6A; Ir: 2÷5uA; 250VAC; 1MΩ
Type of connector: AC supply
Kind of connector: male
Connector: socket
Rated voltage: 250V AC
Current rating: 6A
Connector variant: C14 (E)
Mechanical mounting: flange (2 holes); for panel mounting; screw
Leakage current: 2...5µA
Inductance: 0.8mH
Capacitance Cx: 0.1µF
Electrical mounting: 6.3x0,8mm connectors
Standard: IEC 60320
Design: filter; fuse x1
Operating temperature: -40...110°C
Resistance: 1MΩ
Leads dimensions: 6.3x0.8mm
Mounting holes pitch: 36mm
Leads: connectors
Anzahl je Verpackung: 1 Stücke
auf Bestellung 28 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 25.11 EUR |
| 4+ | 23.74 EUR |
| 20+ | 22.82 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details FDMM06SFR XP POWER
Description: PWR ENT RCPT IEC320-C14 PANEL QC, Packaging: Tray, Features: Bleed Resistor, Shielded, Filter Type: Filtered (EMI, RFI) - Commercial, Medical, Connector Type: Receptacle, Male Blades, Mounting Type: Panel Mount, Flange, Number of Positions: 3, Termination: Quick Connect - 0.250" (6.3mm), Approval Agency: CE, cURus, UL, VDE, Panel Cutout Dimensions: Rectangular - 28.50mm x 33.00mm, Connector Style: IEC 320-C14, Material Flammability Rating: UL94 V-2, Accomodates a Fuse: Yes (Fuse Not Included), Fuse Holder, Drawer: Fuse Holder, Twin Fused, Part Status: Active, Current Rating - Appliance Inlet: 6A, Voltage Rating - Appliance Inlet: 115/230VAC, Current Rating - Filter: 6A.
Weitere Produktangebote FDMM06SFR nach Preis ab 22.82 EUR bis 29.04 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FDMM06SFR | Hersteller : XP POWER |
Category: IEC 60320 connectors Description: Connector: AC supply; socket; male; Inom: 6A; Ir: 2÷5uA; 250VAC; 1MΩ Type of connector: AC supply Kind of connector: male Connector: socket Rated voltage: 250V AC Current rating: 6A Connector variant: C14 (E) Mechanical mounting: flange (2 holes); for panel mounting; screw Leakage current: 2...5µA Inductance: 0.8mH Capacitance Cx: 0.1µF Electrical mounting: 6.3x0,8mm connectors Standard: IEC 60320 Design: filter; fuse x1 Operating temperature: -40...110°C Resistance: 1MΩ Leads dimensions: 6.3x0.8mm Mounting holes pitch: 36mm Leads: connectors |
auf Bestellung 28 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
FDMM06SFR | Hersteller : XP Power |
AC Power Entry Modules EMC FILTER, IEC INLET, 6A, MEDICAL |
auf Bestellung 2 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
FDMM06SFR | Hersteller : XP Power |
Description: PWR ENT RCPT IEC320-C14 PANEL QC Packaging: Tray Features: Bleed Resistor, Shielded Filter Type: Filtered (EMI, RFI) - Commercial, Medical Connector Type: Receptacle, Male Blades Mounting Type: Panel Mount, Flange Number of Positions: 3 Termination: Quick Connect - 0.250" (6.3mm) Approval Agency: CE, cURus, UL, VDE Panel Cutout Dimensions: Rectangular - 28.50mm x 33.00mm Connector Style: IEC 320-C14 Material Flammability Rating: UL94 V-2 Accomodates a Fuse: Yes (Fuse Not Included) Fuse Holder, Drawer: Fuse Holder, Twin Fused Part Status: Active Current Rating - Appliance Inlet: 6A Voltage Rating - Appliance Inlet: 115/230VAC Current Rating - Filter: 6A |
auf Bestellung 1 Stücke: Lieferzeit 10-14 Tag (e) |
|
