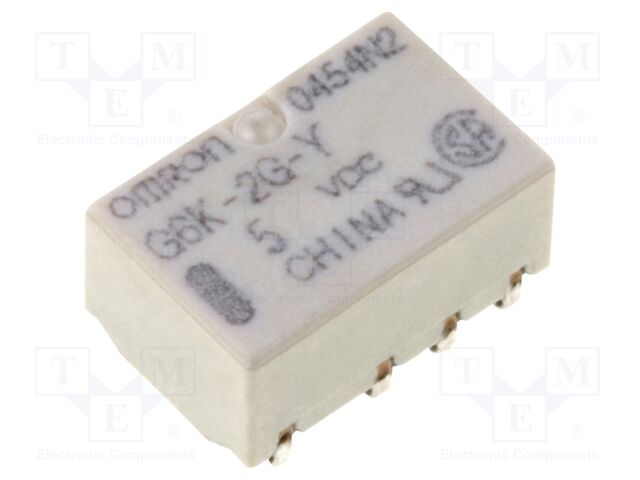

G6K-2G-Y 5VDC OMRON Electronic Components
Hersteller: OMRON Electronic ComponentsCategory: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 1A; SMD
Mounting: SMD
Operating temperature: -40...70°C
Terminal pitch: 3.2mm
Coil power consumption: 100mW
Operate time: 3ms
Release time: 3ms
Switched voltage: max. 60V DC; max. 125V AC
Contact resistance: 100mΩ
Coil current: 21.1mA
Contact current max.: 1A
Body dimensions: 10x6.5x5.2mm
Coil resistance: 237Ω
Contacts configuration: DPDT
AC contacts rating @R: 0.3A / 125V AC
DC contacts rating @R: 1A / 30V DC
Type of relay: electromagnetic
Relay variant: subminiature
Relay series: G6K
Rated coil voltage: 5V DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1191 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 16+ | 4.53 EUR |
| 18+ | 4.13 EUR |
| 24+ | 3 EUR |
| 26+ | 2.83 EUR |
| 500+ | 2.79 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details G6K-2G-Y 5VDC OMRON Electronic Components
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 1A; SMD, Mounting: SMD, Operating temperature: -40...70°C, Terminal pitch: 3.2mm, Coil power consumption: 100mW, Operate time: 3ms, Release time: 3ms, Switched voltage: max. 60V DC; max. 125V AC, Contact resistance: 100mΩ, Coil current: 21.1mA, Contact current max.: 1A, Body dimensions: 10x6.5x5.2mm, Coil resistance: 237Ω, Contacts configuration: DPDT, AC contacts rating @R: 0.3A / 125V AC, DC contacts rating @R: 1A / 30V DC, Type of relay: electromagnetic, Relay variant: subminiature, Relay series: G6K, Rated coil voltage: 5V DC, Anzahl je Verpackung: 1 Stücke.
